Band Stop Filter

From 2400MHz to 2483.5MHz

Brand :ENRICHTEK

P/N :EBT-2E4-2E483

MOQ :1

REQUEST QUOTE

A band stop filter is also known as a notch filter or band reject filter, it blocks frequencies between the stop band, and passes all the frequencies outside this range.
The stop band of this cavity band stop filter EBT-2E4-2E483 from ENRICHTEK is from 2.4GHz to 2.4835GHz, it’s maximum handing power is 20 Watt(CW). The stop band attenuation is larger than 50dB.
With a 50 Ohm impedance, the VSWR of this band stop filter EBT-2E4-2E483 is less than 1.7, the insertion loss is less than 2.0dB.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry, aviation and military.
The band stop filters from ENRICHTEK are customizable with good cost performance. Customer can require the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Stop Band Frequency	2.4～2.4835GHz
Stop Band Attenuation	≥50dB
Pass Band Frequency	1MHz～2.375GHz & 2.51～6.0GHz
Pass Band Insertion Loss	≤2.0dB
Pass Band Return Loss	≥12dB
Impedance	50 ohms
Power Handling	≤20W

Mechanical Specifications

Dimensions	1953922mm
Connectors	SMA-Female
Surface Finish	Black Paint
Net Weight	0.33 KG

Environmental Specifications

Operating Temperature	-10 to +50ºC
Storage Temperature	-55 to +95 ºC

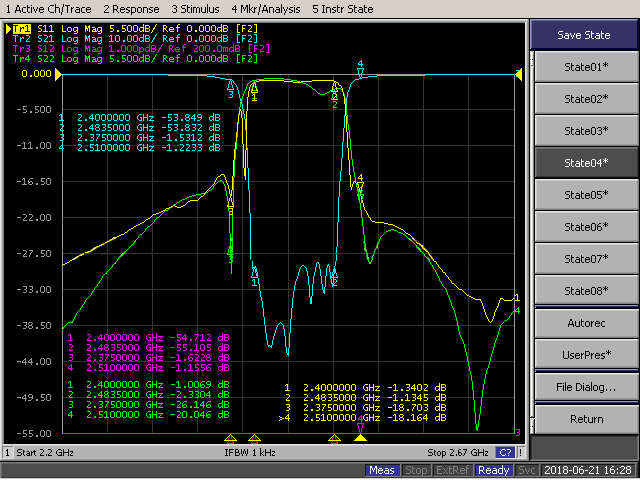

Typical Performance

2.4-2.4835GHz Cavity Band Rejection Filter.png

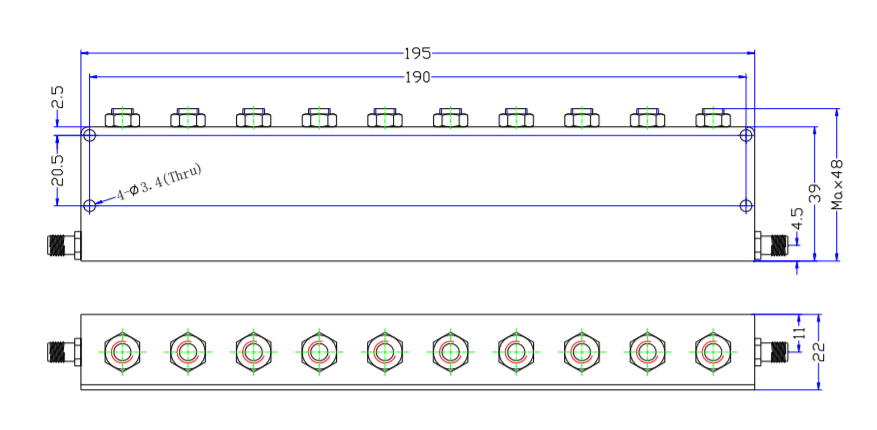

Outline Drawing (unit: mm)

2.4~2.4835GHz Band Stop Filter9.png
