High Pass Filter

From 18GHz to 40GHz

Brand :ENRICHTEK

P/N :EHP-18E-40E

MOQ :1

REQUEST QUOTE

ENRICHTEK 's high pass filters are wildly used in radio frequency devices. They can reject signals below designed, and pass signals above the designed frequency.

The operating frequency of this suspended stripline high pass filter EHP-18E-40E is from 18GHz to 40GHz, the maximum handing power is 15 Watt(CW). With a 50 Ohm impedance, the VSWR is less than 1.8, and the passband ripple is less than 1.0dB and the maximum insertion loss of this suspended stripline high pass filter EHP-18E-40E is 1.0dB at 19.5-40GHz. The rejection of this suspended stripline high pass filter EHP-18E-40E is larger than 50dB at DC-15GHz.The suspended stripline high pass filter EHP-18E-40E from ENRICHTEK has been proven and tested as all our standard RF filter products.

ENRICHTEK provides high pass filter design service to meet customer’s requirements, such as changing the cutoff frequency, connectors, mechanical structure, or changing the electrical parameters.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	18GHz
Pass Band Frequency	18～40GHz
Pass Band Insertion Loss	≤2.0dB @ 18～19.5GHz ≤1.0dB @ 19.5～40GHz
Pass Band VSWR	≤1.8:1
Stop Band Attenuation	≥50dB @ DC～15GHz
Impedance	50 ohms
Power	≤15W

Mechanical Specifications

Dimensions	12.712.710mm
Connectors	2.92mm-Female
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.01KG

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

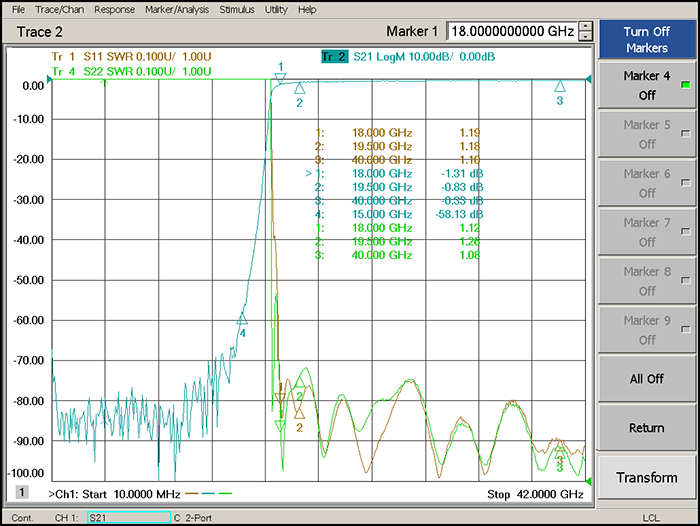

Typical Performance

18-40GHz Suspended Stripline High Pass Filter.png

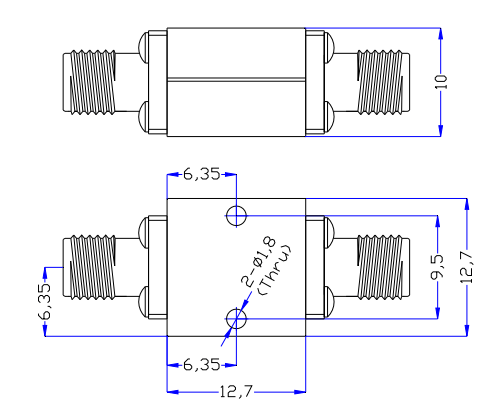

Outline Drawing (unit: mm)
