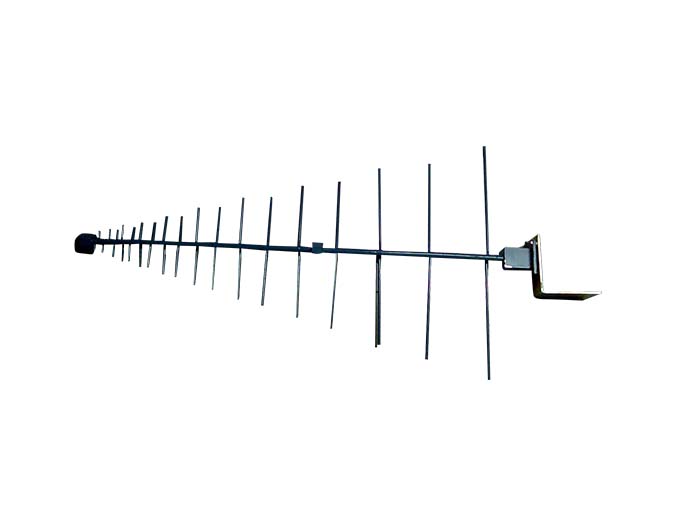

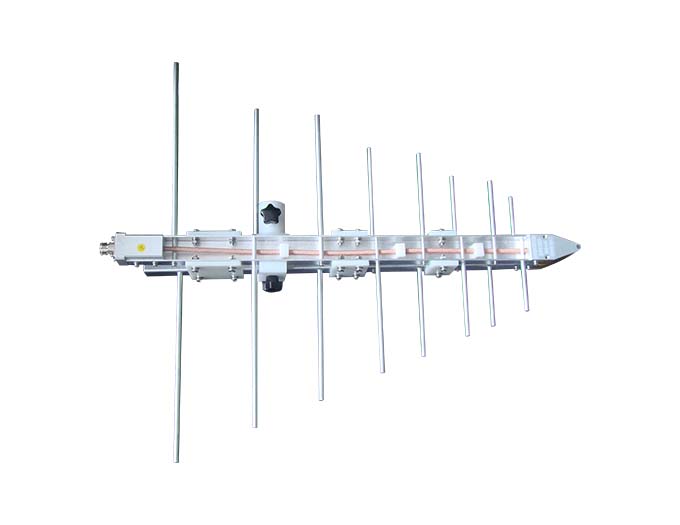

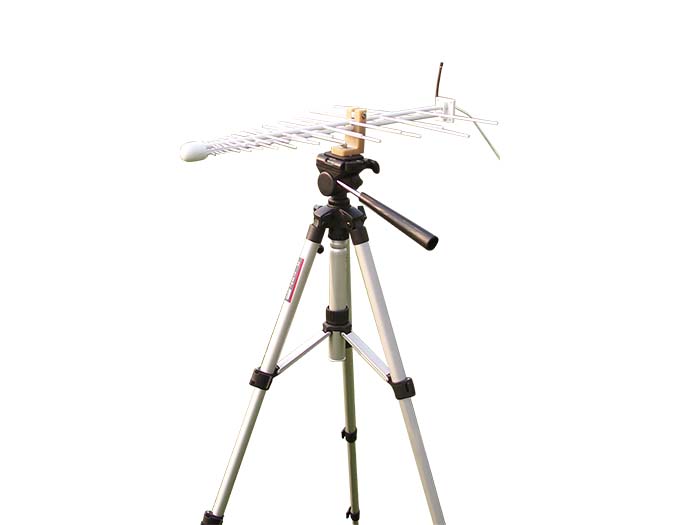

Log Periodic Antenna

Brand :ENRICHTEK

P/N :ATBDLP Series

MOQ :1

Log periodic antenna is a kind of antenna designed for transmitting and receiving signals in a wide band range. It is linear polarization and can easily adjust polarization on any plane. It has the characteristic of superior gain at all frequencies.

The ATBDLP series Log periodic antennas from ENRICHTEK range from 100MHz to 6000MHz, and the typical in-band VSWR is smaller than 3. They belong to Log dipole antenna with light weight and medium gain.

Our Log periodic antennas have the characteristics of all-aluminum material structure, light weight, high strength, zero maintenance rate, which ensure for long-term, stable and reliable use.

Our company can customize Log periodic antenna according to customer's special requirements, especially Log periodic antennas with special requirements for frequency.

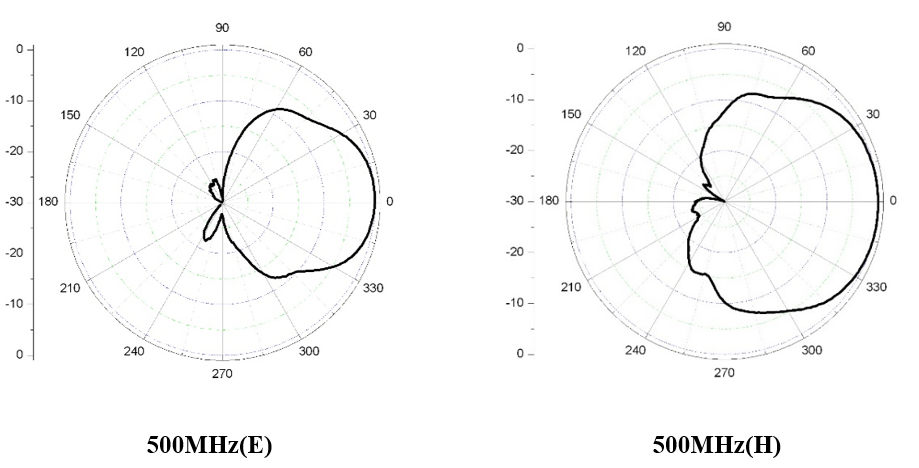

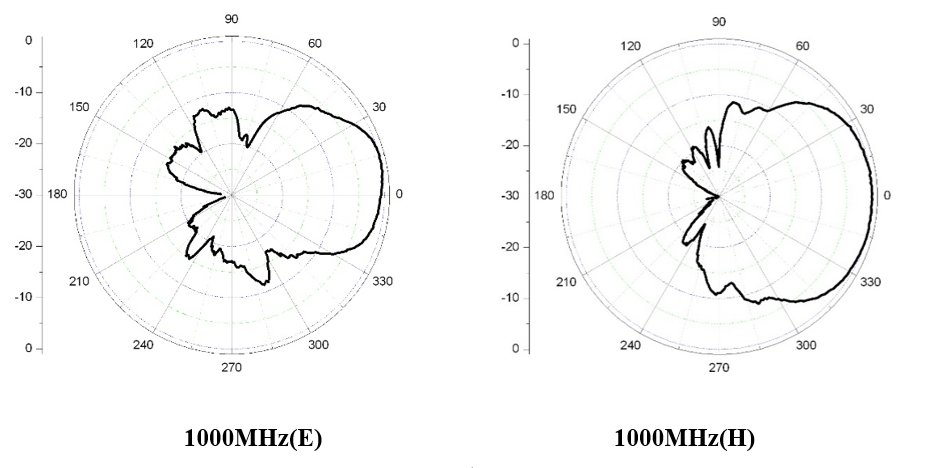

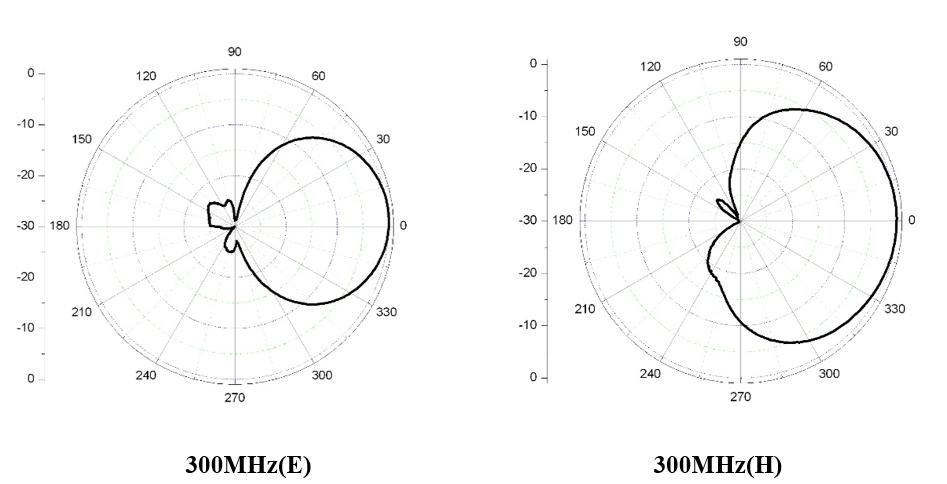

Typical Pattern (P/N: ATBDLPS30100)

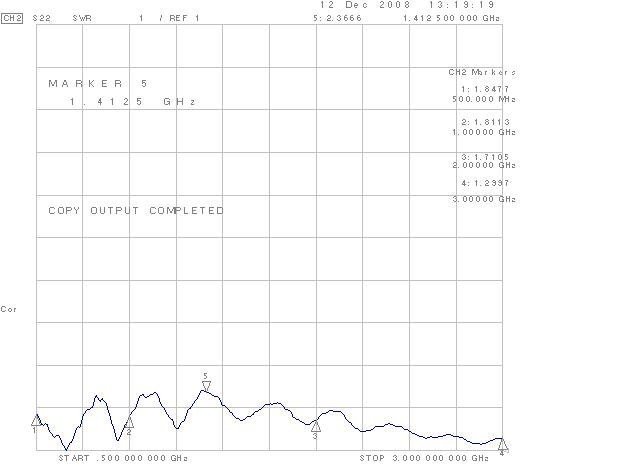

Typical VSWR (P/N: ATBDLPS50300)

Log Periodic Antenna Product List

Note: antenna is customizable according to user requirements

P/N	Freq. (MHz)	VSWR (Typ.)	Gain (dBi)	Beam width(º)	Connector	Dimension (mm)
ATBDLP1050	0.1~0.5	2:1	6	120～50	N	2600×1800
