2~6GHz 5dB

Directional Coupler

Brand :ENRICHTEK

P/N :DC5-2E-6E

MOQ :1

REQUEST QUOTE

RF directional couplers, also called RF couplers, provide simple means of monitoring or sampling RF energy.

This microstrip directional coupler DC5-2E-6E from ENRICHTEK operates from 2GHz to 6GHz with N female connectors. The RF directional coupler DC5-2E-6E has a coupled value of 5dB, the insertion loss is less than 2.4dB, and the directivity is larger than 15dB.With excellent performance, this microstrip directional coupler DC5-2E-6E can be used in military, commerce and education

Directional couplers from ENRICHTEK is customizable, such as changing the frequency, mechanical structure and electrical parameters.

Electrical Specifications

Parameters	Typical Value
Coupling	5±1dB
Frequency Range	2～6GHz
Insertion Loss	≤2.4dB
Frequency Sensitivity	≤±1dB
Directivity	≥15dB
VSWR	≤1.5:1

Mechanical Specifications

Dimensions		502219 mm
Connectors		N-Female
Surface Finish		Guide Oxygen
Net Weight	0.11 KG

Environmental Specifications

Operating Temperature	-40 to +70ºC
Storage Temperature	-55 to +95 ºC

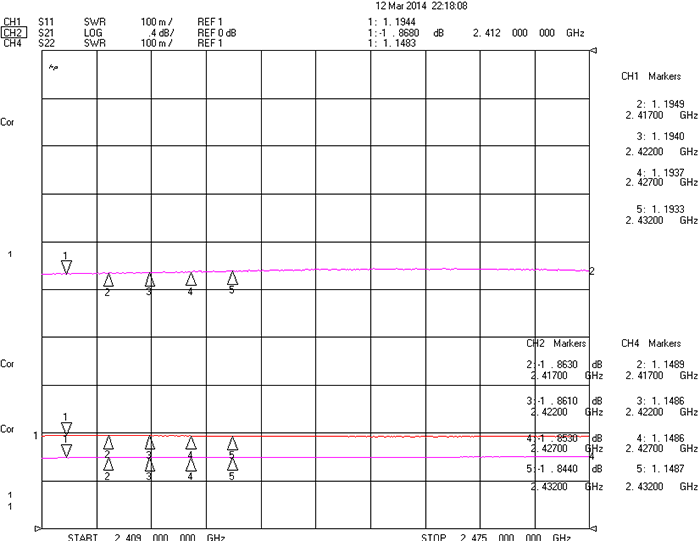

Typical Performance

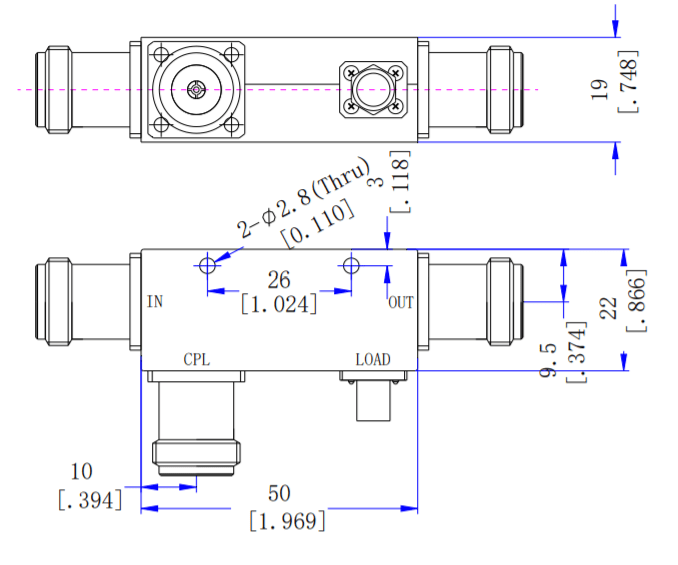

Outline Drawing (unit: mm)

2~6GHz 5dB Directional Coupler9.png
