Curve Meeting Radar Sensor

Brand :ENRICHTEK

P/N :Curve Meeting Radar Sensor

MOQ :1

Curve meeting radar sensor, is designed by applying 24GHz band microwave CW Doppler principle, transmitting microwave and receiving the reflected echo signal from the target with on-board microstrip antenna, when sensing the relative movement signal echo of the object within the signal coverage, after the high gain IF signal amplification processing circuit inside the sensor and MCU program wave detection processing, the corresponding control signal is output to realize intelligent control.

Applications

Can be applied to automotive driver assistance systems and related intelligent products.


P/N: TSM_V1.07

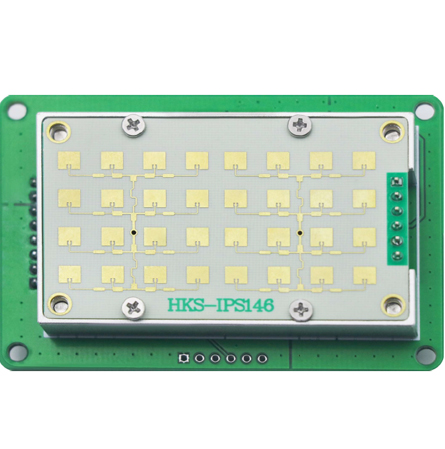

Radar Transceiver Surface


P/N:TSM_V1.07

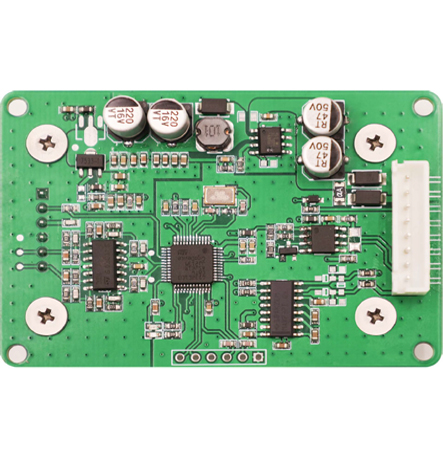

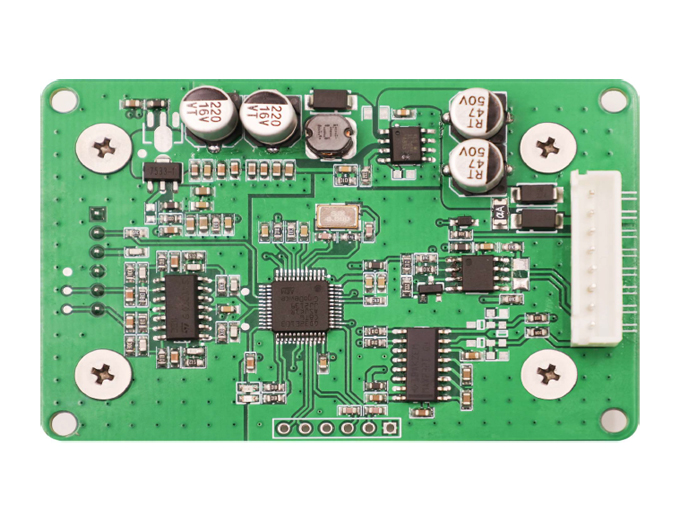

Signal Processing Surface

P/N:BSD_V11

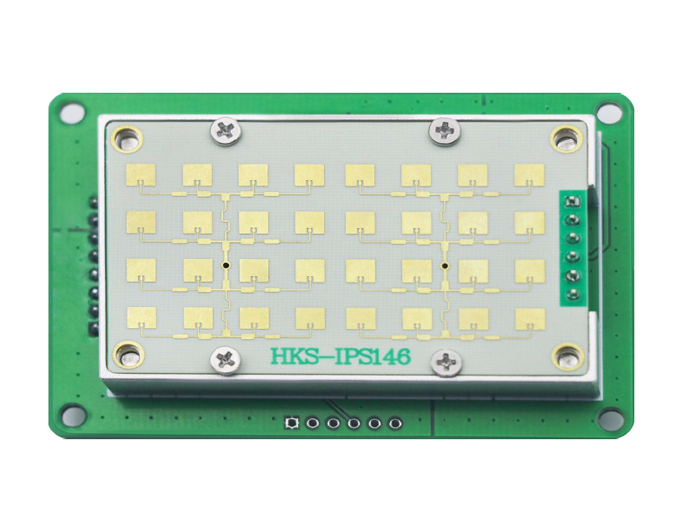

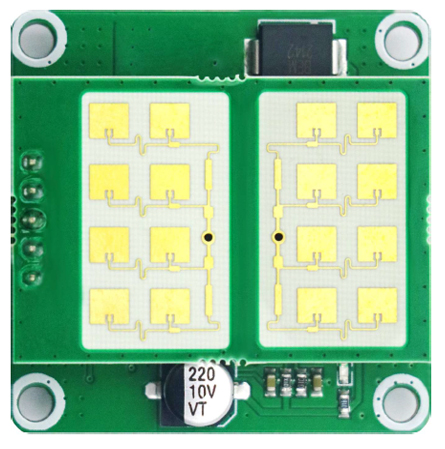

Radar Transceiver Surface

P/N:BSD_V11

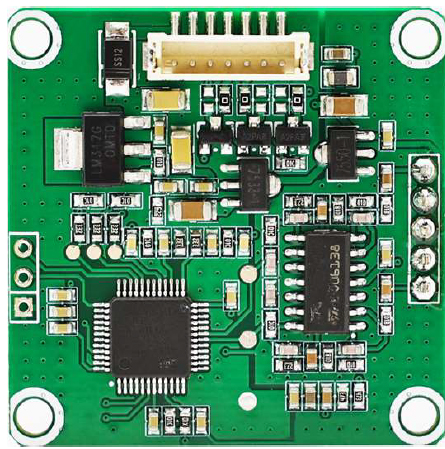

Signal Processing Surface

P/N	TSM_V1.07	BSD_V11
Operating frequency	24.0-24.250GHz	24.0-24.250GHz
Refresh cycle	1S	20ms
Target recognition type	Movement Objectives	Movement Target
Target movement direction	Distinguish between close/away	Distinguish between close/away
Speed test range	2-150Km/H	2-150Km/H
Velocity resolution	2Km/H	2Km/H
3dB beamwidth(horizontal)	33°	54°
3dB beamwidth (pitch)	33°	28°
Operating voltage	9-16V DC	9-14V DC
Operating current	50-70mA@12V	45-60mA
Operating temperature	-20~60℃	-20~60℃
Average power	<0.7W	<0.7W @12V
Maximum sensing range (small car)	150m	30m
Interface	RS232+ RS485	Open-drain output
Module size (LWH)	734920 mm	383813mm
