Low Pass Filter

From DC to 20GHz

Brand :ENRICHTEK

P/N :ELP-20E

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-20E from ENRICHTEK is from DC to 20 GHz. The maximum handing power is 15 Watt(CW).The passband ripple is less than 1.0dB and the maximum insertion loss of this low pass filter ELP-20E is 1.0dB@DC~19GHz. The rejection at 21.1GHz-27GHz is larger than 50dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-20E is 1.6.

Low pass filters from ENRICHTEK are widely used in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	20GHz
Pass Band Frequency	DC～20GHz
Pass Band Insertion Loss	≤1.0dB @ DC～19GHz ≤3.0dB @ 19～20GHz
Pass Band VSWR	≤1.6:1
Stop Band Attenuation	≥50dB @ 21.2～27GHz
Impedance	50 ohms
Power	≤15W
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.0135 KG

Mechanical Specifications

Dimensions	171710mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

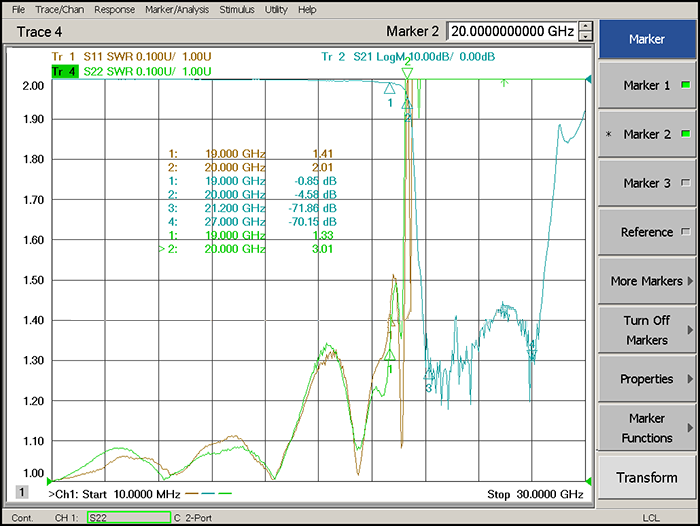

Typical Performance

DC-20GHz Suspended Stripline Low Pass Filter.png

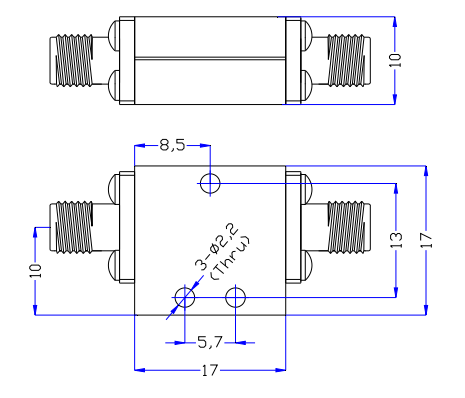

Outline Drawing (unit: mm)
