2~10GHz 6dB

Directional Coupler

Brand :ENRICHTEK

P/N :DC6-2E-10E

MOQ :1

REQUEST QUOTE

RF directional couplers, also called RF couplers, provide simple means of monitoring or sampling RF energy.

This microstrip directional coupler DC6-2E-10E from ENRICHTEK operates from 2GHz to 10GHz with SMA female connectors. The RF directional coupler DC6-2E-10E has a coupled value of 6dB, the insertion loss is less than 2.5dB, and the directivity is larger than 5dB.With excellent performance, this microstrip directional coupler DC6-2E-10E can be used in military, commerce and education.

Directional couplers from ENRICHTEK is customizable, such as changing the frequency, mechanical structure and electrical parameters.

Electrical Specifications

Parameters	Typical Value
Coupling	6±1.5dB
Frequency Range	2～10GHz
Insertion Loss	≤2.5dB
Directivity	≥5dB
VSWR	≤1.6:1
Power	≤20W
Impedance	50 Ohms

Mechanical Specifications

Dimensions	502210mm
Connectors	SMA-Female
Surface Finish	Guide Oxygen
Net Weight	0.038 KG

Environmental Specifications

Operating Temperature	-30 to +75ºC
Storage Temperature	-55 to +95 ºC

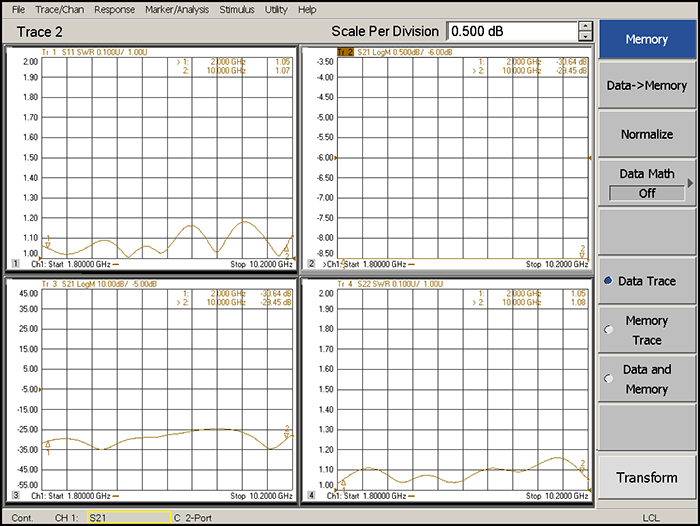

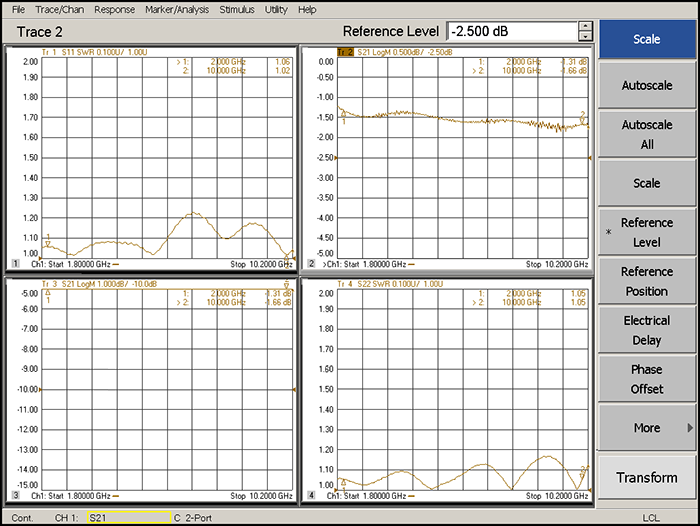

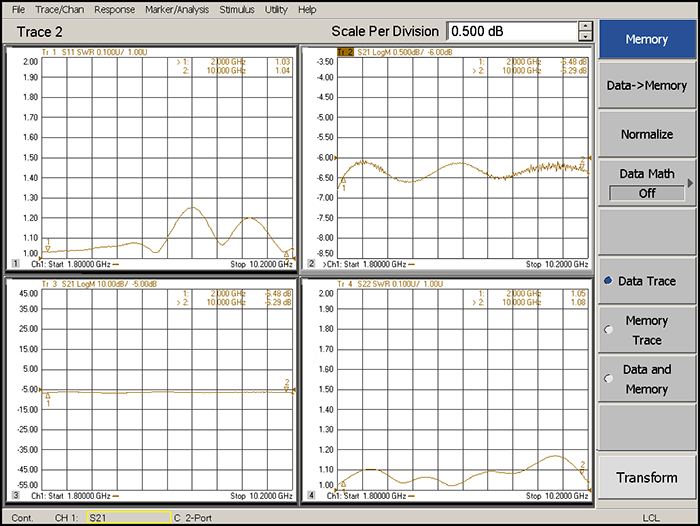

Typical Performance

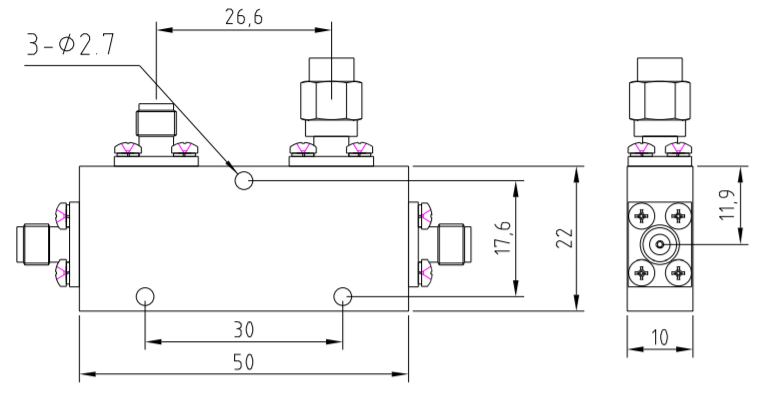

Outline Drawing (unit: mm)

2~10GHz 6dB Directional Coupler9.png
