Band Stop Filter

From 1785MHz to 1805MHz(B)

Brand :ENRICHTEK

P/N :EBT-1E785-1E805B

MOQ :1

REQUEST QUOTE

A band stop filter is also known as a notch filter or band reject filter, it blocks frequencies between the stop band, and passes all the frequencies outside this range.
The stop band of this cavity band stop filter EBT-1E785-1E805 from ENRICHTEK is from 1785MHz to 1805MHz, it’s maximum handing power is 10 Watt(CW). The stop band attenuation is larger than 30dB.
With a 50 Ohm impedance, the VSWR of this band stop filter EBT-1E785-1E805 is less than 1.5, the insertion loss is less than 2.5dB.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry, aviation and military.
The band stop filters from ENRICHTEK are customizable with good cost performance. Customer can require the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Stop Band Frequency	1785 ~ 1805MHz
Stop Band Rejection	≥30dB
Pass Band Frequency	DC ~ 1770MHz , 1820 ~ 5200MHz
Pass Band Insertion Loss	≤2.5dB
Pass Band VSWR	≤1.5:1
Impedance	50 Ohms
Power Handling	10W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	2255022mm
Connectors	SMA-Male / SMA-Female
Surface Finish	Painted Black
Net Weight	0.44 KG

Environmental Specifications

Operating Temperature	-10 to +50ºC
Storage Temperature	-55 to +95ºC

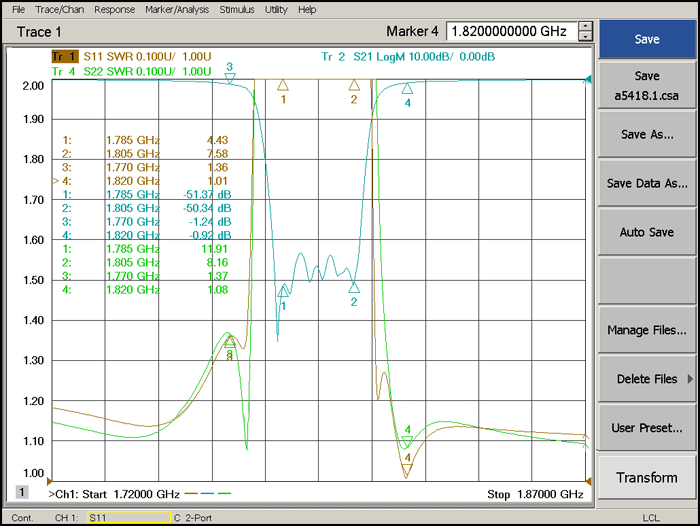

Typical Performance

1785-1805MHz Cavity Band Rejection Filter（2）.png

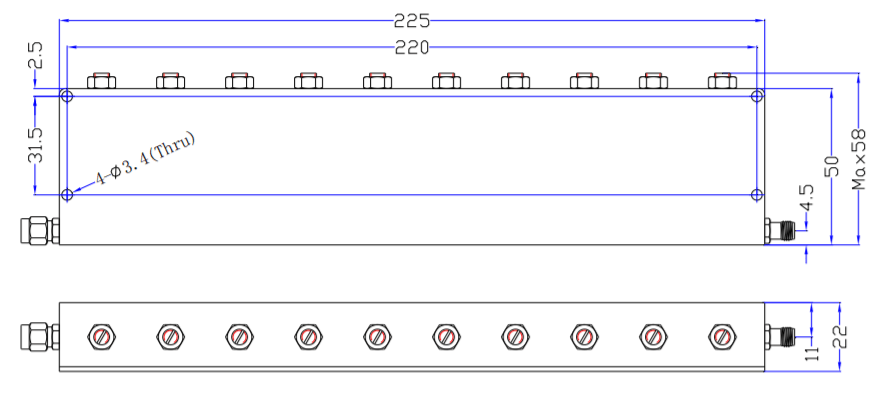

Outline Drawing (unit: mm)

1785~1805MHz Band Stop Filter9(2).png
