Band Stop Filter

From 2110MHz to 2130MHz

Brand :ENRICHTEK

P/N     :EBT-2E11-2E13

MOQ  :1

A band stop filter is also known as a notch filter or band reject filter, it blocks frequencies between the stop band, and passes all the frequencies outside this range.
The stop band of this cavity band stop filter EBT-2E11-2E13 from ENRICHTEK is from 2110MHz to 2130MHz, it’s maximum handing power is 30 Watt(CW).  The stop band attenuation is larger than 40dB.
With a 50 Ohm impedance, the VSWR of this band stop filter EBT-2E11-2E13 is less than 1.5, the insertion loss is less than 1.0dB.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry, aviation and military.
The band stop filters from ENRICHTEK are customizable with good cost performance. Customer can require the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters

Typical Value

Stop Band Frequency

21102130MHz

Stop Band Rejection

≥40dB

Pass Band Frequency

DC2060MHz & 21805000MHz

Pass Band Insertion Loss

≤1.0dB

Pass Band VSWR

≤1.5:1

Impedance

50 ohms

Power Handling

≤30W

Mechanical Specifications

Dimensions

225*42.5*22mm

Connectors

SMA-Female

Surface Finish

Black Paint

Net Weight

0.385 KG

Environmental Specifications

Operating Temperature

-20 to +60ºC

Storage Temperature

-55 to +95ºC

Typical Performance

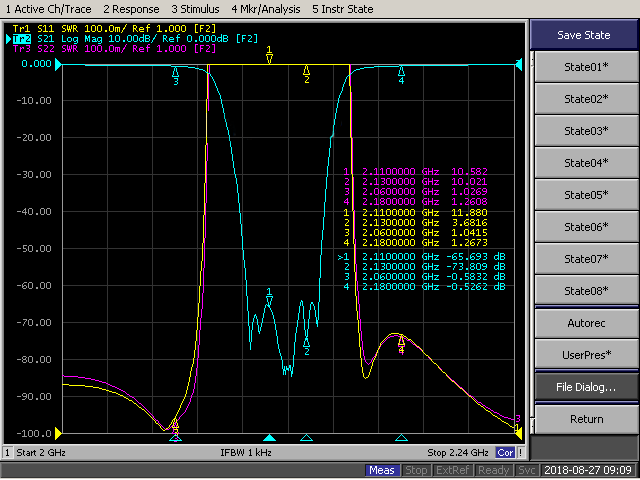

2110-2130MHz Cavity Band Rejection Filter.png

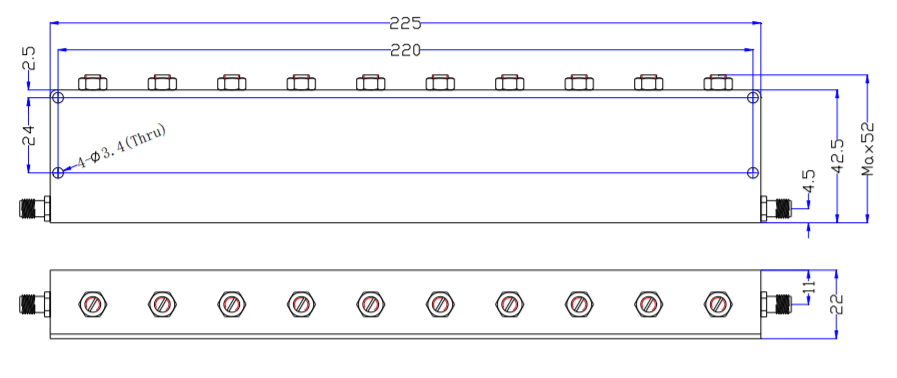

Outline Drawing (unit: mm)

2110~2130MHz Band Stop Filter9.png
