Band Stop Filter

From 4800MHz to 4900MHz

Brand :ENRICHTEK

P/N :EBT-4E8-4E9

MOQ :1

REQUEST QUOTE

A band stop filter is also known as a notch filter or band reject filter, it blocks frequencies between the stop band, and passes all the frequencies outside this range.
The stop band of this cavity band stop filter EBT-4E8-4E9 from ENRICHTEK is from 4800MHz to 4900MHz, it’s maximum handing power is 20 Watt(CW). The stop band attenuation is larger than 40dB.
With a 50 Ohm impedance, the VSWR of this band stop filter EBT-4E8-4E9 is less than 1.7, the insertion loss is less than 2.5dB.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry, aviation and military.
The band stop filters from ENRICHTEK are customizable with good cost performance. Customer can require the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Stop Band Frequency	4800 ~ 4900MHz
Stop Band Attenuation	≥40dB
Pass Band Frequency	DC ~ 4740MHz , 4960 ~ 10000MHz
Pass Band Insertion Loss	≤2.5dB
Pass Band VSWR	≤1.7:1
Impedance	50 Ohms
Power	20W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: Stainless Steel Other screw: Stainless Steel

Mechanical Specifications

Dimensions	1412816mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.16 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

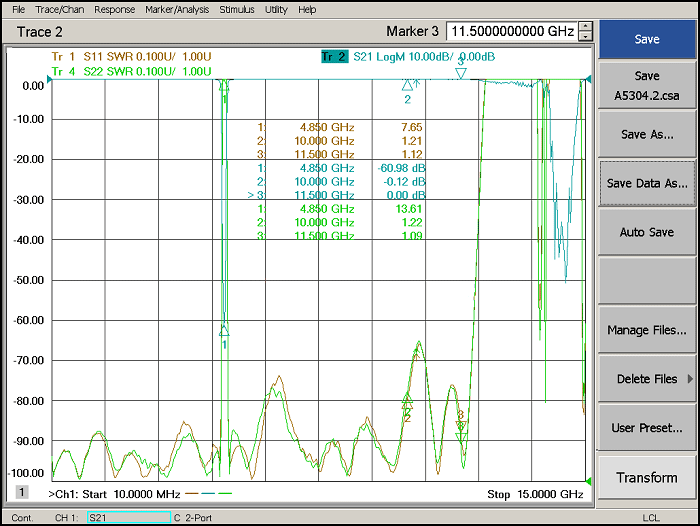

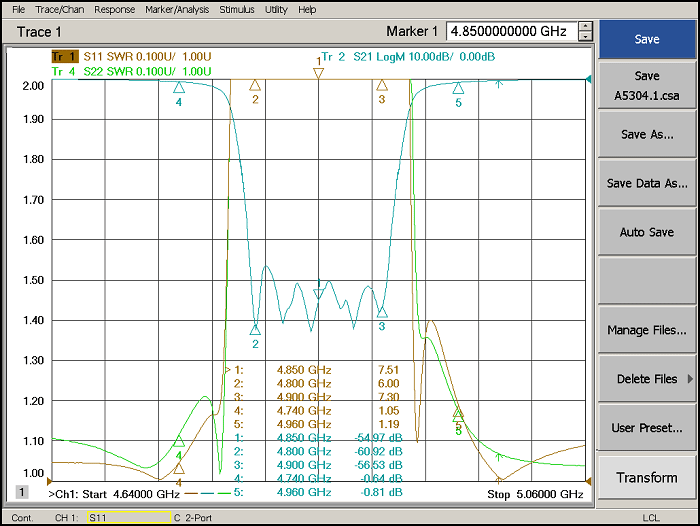

Typical Performance

4800-4900MHz Cavity Band Rejection Filter.png

Outline Drawing (unit: mm)

4800~4900MHz Band Stop Filter9.png
