Diplexer With 360.0~362.0MHz/368.0~370.0MHz Passband

Brand :ENRICHTEK

P/N :EDI-E361-E369

MOQ :1

RF diplexer is a simplest RF multiplexer, it has 3 ports and consists of two filters at different frequencies. 2 different signals enter the diplexer and pass through the different filters individually, and then to a same antenna.

Our RF engineers utilize multiple computer modeling in the design of this RF diplexer EDI-E361-E369. This RF diplexer EDI-E361-E369 has two channels of 360-362MHz and 368-370MHz.With a 50 Ohm impedance, the pass band insertion loss of this RF diplexer EDI-E361-E369 is smaller than 1.5dB.The rejection of this RF diplexer EDI-E361-E369 is larger than 35dB at 368-370MHz, and larger than 35dB at 360-362MHz.With excellent performance and small structure, this RF diplexer EDI-E361-E369 can be used in military, commerce and education

RF diplexer from ENRICHTEK is customizable , such as changing the frequency, connectors, mechanical structure, or changing the electrical parameters.

Electrical Specifications

Parameters	Typical Value
Parameters	RX	TX
Center Frequency	361MHz	369MHz
Bandwidth	2MHz (360～362MHz)	2MHz (368～370MHz)
Insertion Loss	≤1.5dB	≤1.5dB
VSWR	≤1.3:1	≤1.3:1
Rejection	≥35dB @ 368～370MHz	≥35dB @ 360～362MHz
Impedance	50 ohms
Power	≤20W
Surface Finish	Black Paint
Port Sign	Port1:ANT ; Port2:RX ; Port3:TX

Mechanical Specifications

Dimensions	9218072mm
Connectors	SMA-Female
Net Weight	1.27 KG

Environmental Specifications

Operating Temperature	-20 to +70ºC
Storage Temperature	-55 to +95 ºC

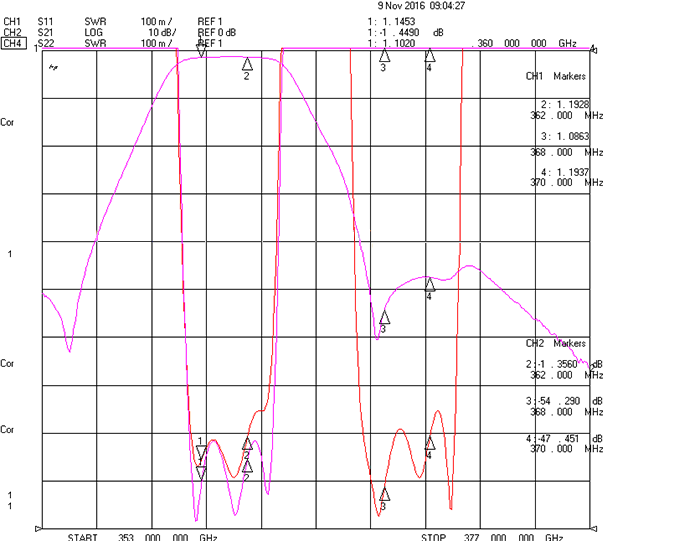

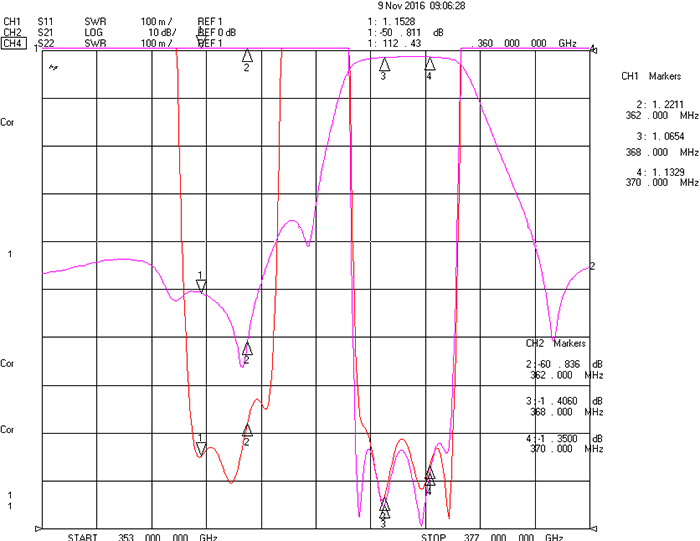

Typical Performance

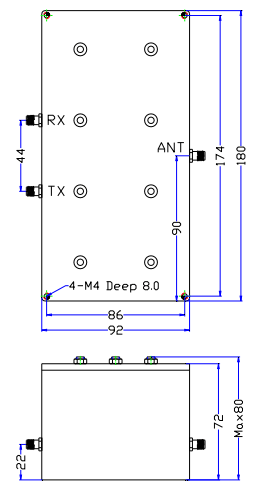

Outline Drawing (unit: mm)

360~362MHz and 368~370MHz Diplexer.png
