RF diplexer is a simplest RF multiplexer, it has 3 ports and consists of two filters at different frequencies. 2 different signals enter the diplexer and pass through the different filters individually, and then to a same antenna.

Our RF engineers utilize multiple computer modeling in the design of this RF diplexer EDI-1E795-2E045. This RF diplexer EDI-1E795-2E045 has two channels of 1710-1880MHz and 1920-2170MHz.
With a 50 Ohm impedance, the pass band insertion loss of this RF diplexer EDI-1E795-2E045 is smaller than 1.3dB, the pass band return loss is larger than 15dB.
The rejection of this RF diplexer EDI-1E795-2E045 is larger than 60dB at 1920-2170MHz, and larger than 60dB at 1710-1880MHz.
With excellent performance and small structure, this RF diplexer EDI-1E795-2E045 can be used in military, commerce and education

RF diplexer from ENRICHTEK is customizable , such as changing the frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Mechanical Specifications

Environmental Specifications

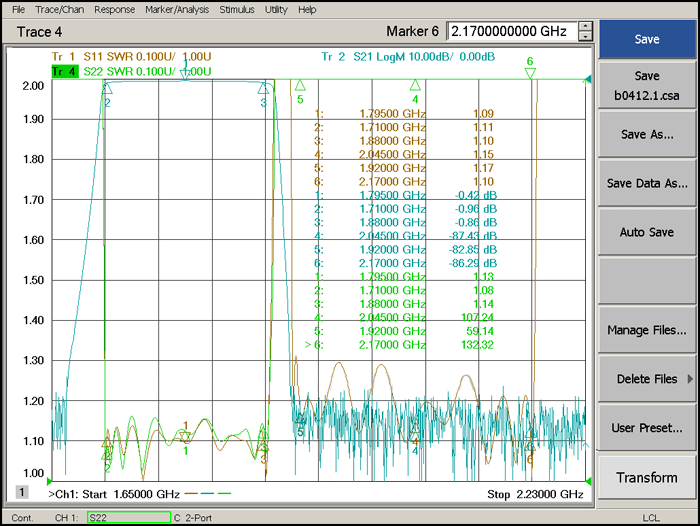

Typical Performance

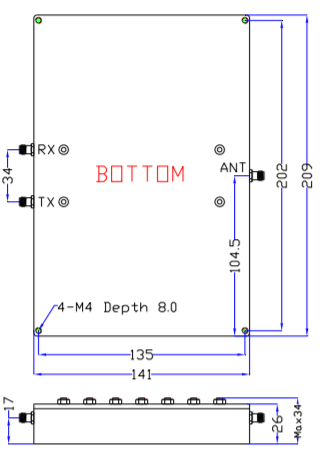

Outline Drawing (unit: mm)
