RF diplexer is a simplest RF multiplexer, it has 3 ports and consists of two filters at different frequencies. 2 different signals enter the diplexer and pass through the different filters individually, and then to a same antenna.
Our RF engineers utilize multiple computer modeling in the design of this RF diplexer EDI-2E48-2E5. This RF diplexer EDI-2E48-2E5 has two channels of 2475-2485MHz and 2499-2501MHz.
With a 50 Ohm impedance, the pass band insertion loss of this RF diplexer EDI-2E48-2E5 is smaller than 2.0dB, the pass band return loss is larger than 18dB.
The rejection of this RF diplexer EDI-2E48-2E5 is larger than 50dB at DC-2350MHz, and larger than 50dB at 2620-4000MHz.
With excellent performance and small structure, this RF diplexer EDI-2E48-2E5 can be used in military, commerce and education
RF diplexer from ENRICHTEK is customizable , such as changing the frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Mechanical Specifications

Environmental Specifications

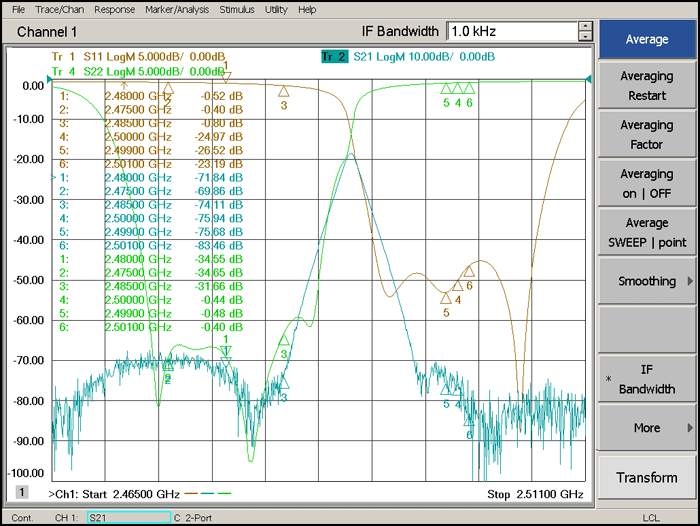

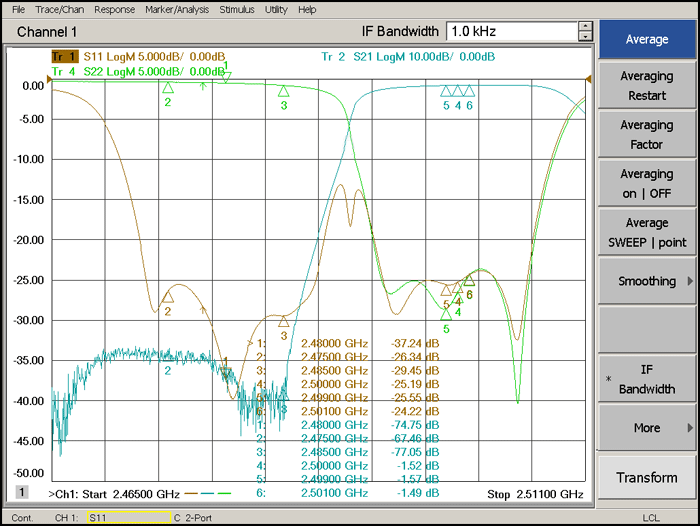

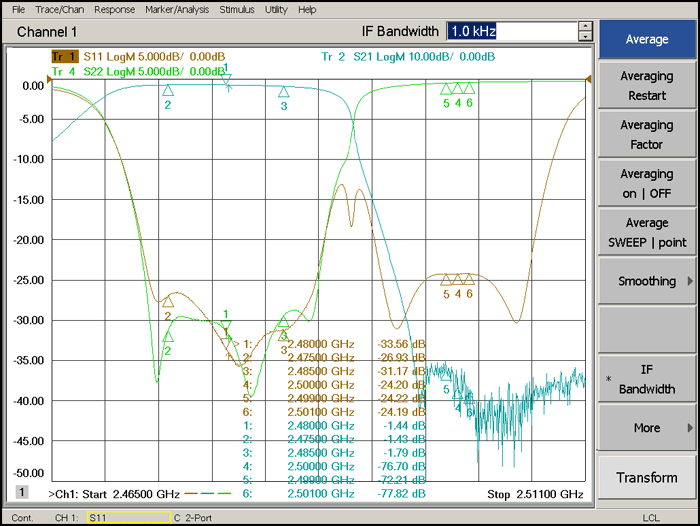

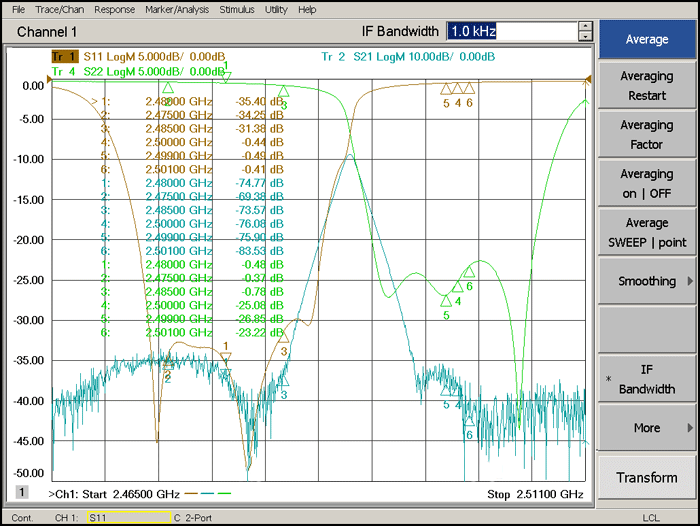

Typical Performance

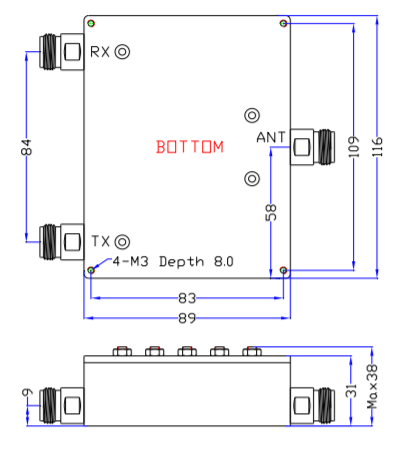

Outline Drawing (unit: mm)
