0.5~6GHz 10dB

Directional Coupler(A)

Brand :ENRICHTEK

P/N :DC10-E5-6EA

MOQ :1

REQUEST QUOTE

RF directional couplers, also called RF couplers, provide simple means of monitoring or sampling RF energy.

This microstrip directional coupler DC10-E5-6E from ENRICHTEK operates from 0.5GHz to 6GHz with SMA female connectors. The RF directional coupler DC10-E5-6E has a coupled value of 10dB, the insertion loss is less than 1.2dB, and the directivity is larger than 15dB.With excellent performance, this microstrip directional coupler DC10-E5-6E can be used in military, commerce and education.

Directional couplers from ENRICHTEK is customizable, such as changing the frequency, mechanical structure and electrical parameters.

Electrical Specifications

Parameters	Typical Value
Coupling	10±1.2dB
Frequency Range	0.5～6.0GHz
Frequency Sensitivity	±1.0dB
Insertion Loss	≤0.6dB (Excluding coupling losses)
Directivity	≥18dB
VSWR	≤1.3:1
Power Handling	50W

Mechanical Specifications

Dimensions	1131711 mm
Connectors	SMA-Female
Surface Finish	Black Paint
Net Weight	0.065 KG

Environmental Specifications

Operating Temperature	-40 to +70ºC
Storage Temperature	-55 to +95 ºC

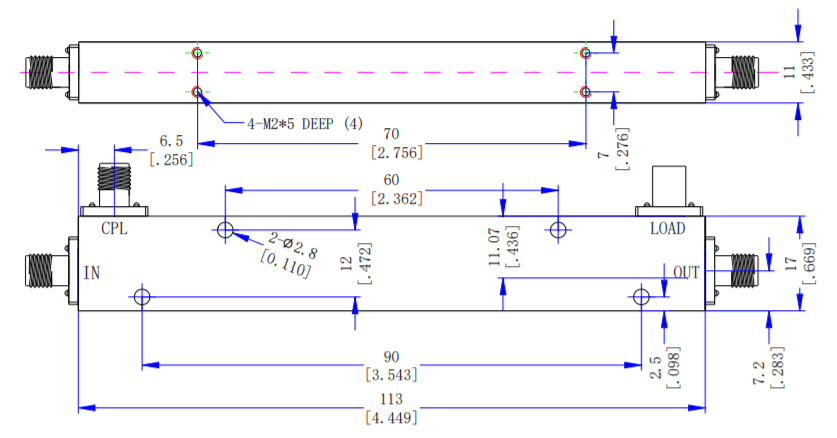

Outline Drawing (unit: mm)

0.5~6GHz 10dB Directional Coupler(A).png
