Directional Coupler

Brand :ENRICHTEK

P/N :DC30-2E-8E

MOQ :1

REQUEST QUOTE

RF directional couplers, also called RF couplers, provide simple means of monitoring or sampling RF energy.

This microstrip directional coupler DC30-2E-8E from ENRICHTEK operates from 2GHz to 8GHz with SMA female connectors. The RF directional coupler DC30-2E-8E has a coupled value of 30dB, the insertion loss is less than 0.4dB, and the directivity is larger than 17dB. With excellent performance, this microstrip directional coupler DC30-2E-8E can be used in military, commerce and education.

Directional couplers from ENRICHTEK is customizable, such as changing the frequency, mechanical structure and electrical parameters.

Electrical Specifications

Parameters	Typical Value
Frequency Range	2～8GHz
Coupling	30±1.0dB
Directivity	≥17dB
Insertion Loss	≤0.4dB(Contain coupling losses)
VSWR	≤1.35:1
Frequency Sensitivity	≤±0.5dB
Power Handling	20W
Impedance	50 Ohms

Mechanical Specifications

Dimensions	431812.25mm
Connectors	SMA-Female
Surface Finish	Black Paint

Environmental Specifications

Operating Temperature	-40 to +70ºC
Storage Temperature	-55 to +85 ºC

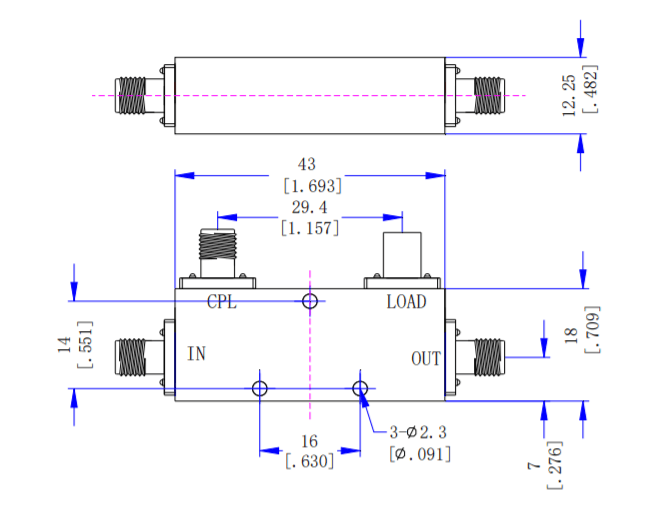

Outline Drawing (unit: mm)

2~8GHz 30dB Directional Coupler9.png
