The frequency of this 4 way RF power divider (also known as 4 way RF power splitter) EPD4-2E-4E2 is from 2000MHz to 4200MHz with a 50 Ohm impedance. The maximum input power is 10 Watt.

This 4 way power divider /power splitter EPD4-2E-4E2 from ENRICHTEK has a typical insertion loss of 0.3dB. The maximum input VSWR of this 4 way power divider/power splitter is 1.35, the isolation is greater than 20dB.

This 4 way power divider/power splitter EPD4-2E-4E2 can be also used as a 4 way RF power combiner to combine 4 signals with equal magnitude and phase.

The Type-N connector is also available for this 4 way power divider/power splitter EPD4-2E-4E2.

ENRICHTEK’s 4 way power dividers/power splitters are available in both narrow and broad bandwidths. All the power divider/power splitter dividers can be customizable to meet your requirements, such as changing the frequency, the electrical parameters, the material, the structure etc.

Electrical Specifications

Mechanical Specifications

Environmental Specifications

Typical Performance

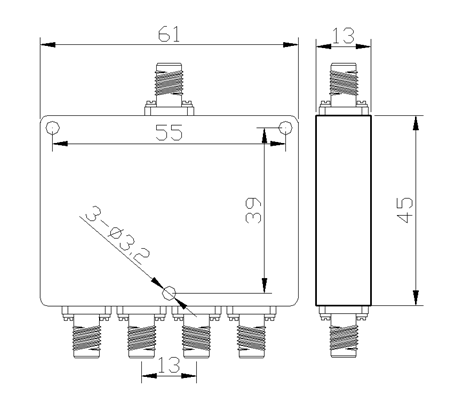

Outline Drawing (unit: mm)
