The frequency of this 4 way RF power divider (also known as 4 way RF power splitter) EPD4-E005-E5 is from 5MHz to 500MHz with a 50 Ohm impedance. The maximum input power is 5 Watt.

This 4 way power divider/power splitter EPD4-E005-E5 from ENRICHTEK has a typical insertion loss of 0.4dB. The maximum input VSWR of this 4 way power divider/power splitter is 1.25, the isolation is greater than 20dB.

The Type-N/BNC connector is also available for this 4 way power divider/power splitter EPD4-E005-E5.

This 4 way power divider/power splitter EPD4-E005-E5 can be also used as a 4 way RF power combiner to combine 4 signals with equal magnitude and phase.

ENRICHTEK provides power divider/power splitter design service, such as changing the frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Mechanical Specifications

Environmental Specifications

Typical Performance

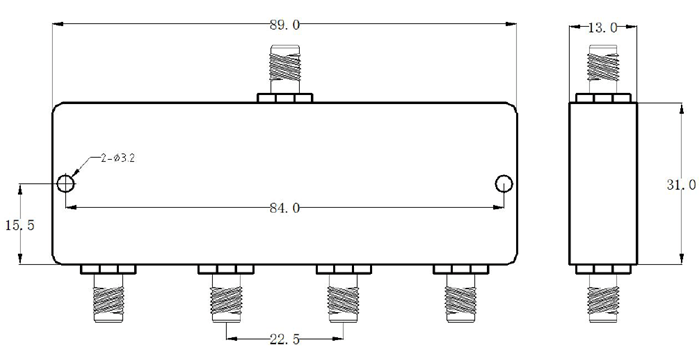

Outline Drawing (unit: mm)
