4 Way Power Divider

From 800MHz to 2000MHz

Brand :ENRICHTEK

P/N :EPD4-E8-2E

MOQ :1

REQUEST QUOTE

The frequency of this 4 way RF power divider (also known as 4 way RF power splitter) EPD4-E8-2E is from 800MHz to 2000MHz with a 50 Ohm impedance. The maximum input power is 20 Watt.

This 4 way power divider/power splitter EPD4-E8-2E from ENRICHTEK has a typical insertion loss of 0.6dB. The maximum input VSWR of this 4 way power divider/power splitter is 1.35, the isolation is greater than 20dB.

The Type-N/BNC connector is also available for this 4 way power divider/power splitter EPD4-E8-2E.

ENRICHTEK provides power divider/power splitter design service, such as changing the frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Description	Typical
Frequency	800~2000MHz
Impedance	50Ohms
Insertion Loss	0.6dB typ. 0.6dB max.
VSWR	1.35:1
Isolation	20dB
Amplitude Balance	0.3dB
Phase Balance	3
Input Power	20W

Mechanical Specifications

Connectors

SMA/N/BNC Female

Environmental Specifications

Operating Temperature	-45 to +85ºC
Storage Temperature	-55 to +95 ºC

Typical Performance

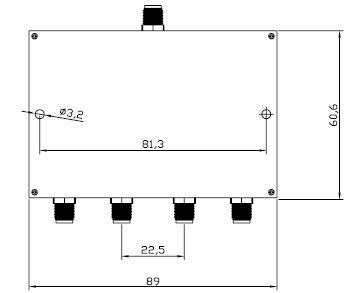

Outline Drawing (unit: mm)

800~2000MHz 4 Way Millimeter Wave Power Divider9.png
