6 Way Power Divider

From 650MHz to 2700MHz

Brand :ENRICHTEK

P/N :EPD6-E65-2E7

MOQ :1

REQUEST QUOTE

The frequency of this 6 way RF power divider (also known as 6 way RF power splitter) EPD6-E65-2E7 is from 650MHz to 2700MHz with a 2050MHz bandwidth. The maximum input power is 10 Watt.

This 6 way power divider/power splitter EPD6-E65-2E7 from ENRICHTEK has a typical insertion loss of 7.8dB. With a 50 Ohm impedance, the maximum input VSWR of this 6 way power divider/power splitter is 1. 4, the isolation is greater than 20dB.

ENRICHTEK provides 6 way power divider/power splitter design service, such as changing the frequency, connectors, mechanical structure, or changing the electrical parameters

Electrical Specifications

Description	Typical
Frequency	650~2700MHz
Impedance	50Ohms
Insertion Loss	0.4dB Min. 1.8dB Max.
VSWR	1.4:1
Isolation	≥20dB
Amplitude Balance	0.4dB
Phase Balance	5
Input Power	10W

Mechanical Specifications

Connectors

SMA Female

Environmental Specifications

Operating Temperature	-45 to +85ºC
Storage Temperature	-55 to +95 ºC

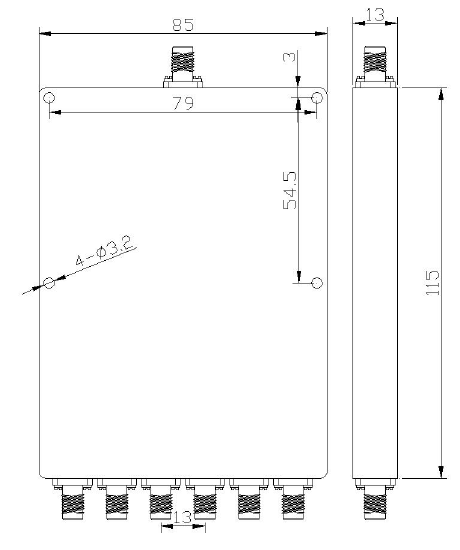

Outline Drawing (unit: mm)

650~2700MHz 6 Way Millimeter Wave Power Divider9.png
