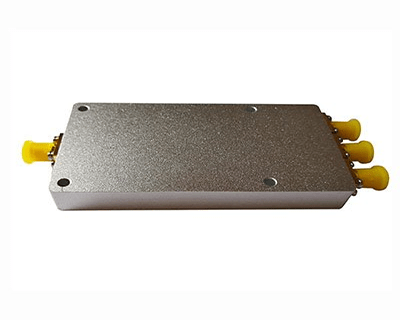

3 Way Power Divider

From 0.5GHz to 6GHz

Brand :ENRICHTEK

P/N :EPD3-E5-6EA

MOQ :1

REQUEST QUOTE

The frequency of this 3 way RF power divider (also known as 3 way RF power splitter) EPD3-E5-6E is from 0.5GHz to 6GHz with a 5.5GHz bandwidth. The maximum input power is 10 Watt.

This 2 way power divider/power splitter EPD3-E5-6E from ENRICHTEK has a typical insertion loss of 1.4dB. With a 50 Ohm impedance, the maximum input VSWR of this 3 way power divider/power splitter is 1.7, the isolation is larger than 17dB.

This 3 way power divider/power splitter EPD3-E5-6E also can be used as a 3 way power combiner, it is wildly used in commercial communication, and it.

We provide flexible 3 way power divider/power splitter customization according to customer’s requirements, such as changing the frequency, connectors, changing the electrical parameters, or mechanical structure.

Electrical Specifications

Parameters	Typical Value
Frequency Range	0.5～6GHz
Bandwidth	5.5GHz
Insertion Loss（Max）	1.4dB
Ripple	±0.5dB

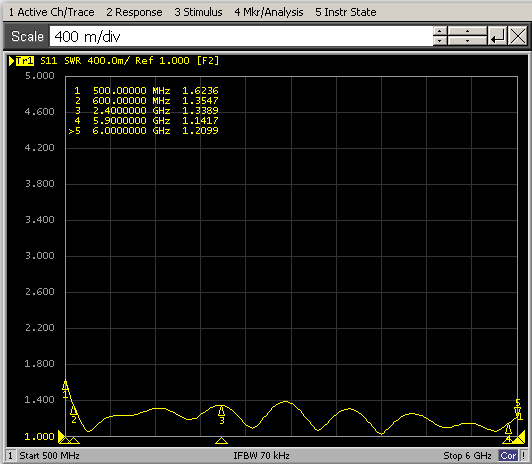

VSWR（Max）	1.7 (0.4-6G≤1.4)

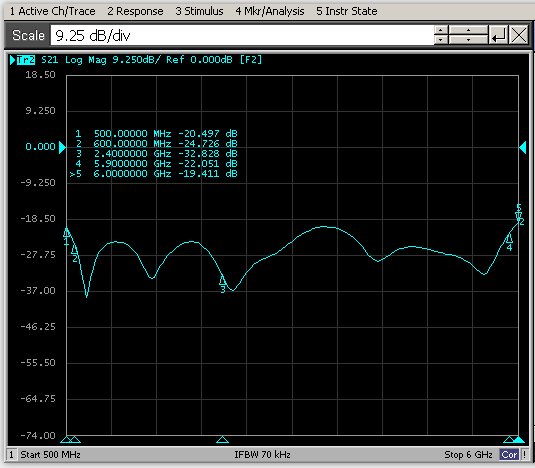

Isolation（Min）	17dB

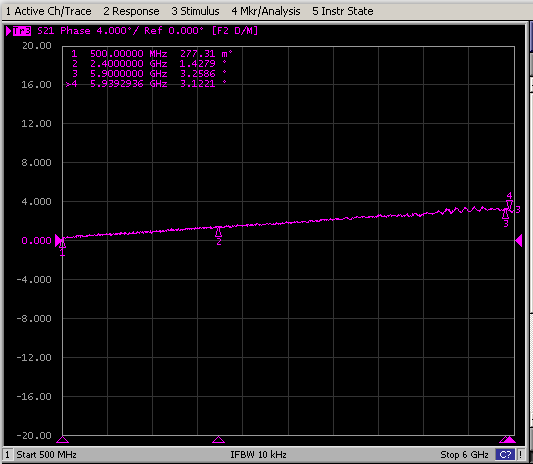

Phase Balance（Max）	±3°
Handling Power（Max）	10W
Impedance	50Ohms
