Millimeter wave power divider (also known as mm wave power divider/ mm wave power splitter) is an important device in microwave and millimeter wave systems.
The design, process and test of millimeter wave power divider are more complicated than general RF power divider. ENRICHTEK combine innovative engineering solutions, extensive simulation design experience, precision machining methods and rigorous testing standards to provide this 4 way broadband millimeter wave power divider EPD4-10E-40E. The frequency of this 4 way millimeter wave power divider EPD4-10E-40E is from 10GHz to 40GHz with a 30GHz bandwidth. The maximum forward power is 10 watt, and the maximum reversed input power is 1 watt.
This 4 way millimeter wave power divider EPD4-10E-40E has a typical insertion loss of 1.5dB, the maximum VSWR is 1.5, the isolation is larger than 16dB.
The frequency of our millimeter wave power dividers are up to 67GHz, they are widely used in communication, radar navigation, electronic countermeasures.
Our millimeter wave power divider is customizable, such as changing the frequency, mechanical structure, or changing the electrical parameters.

Electrical Specifications

Mechanical Specifications

Environmental Specifications

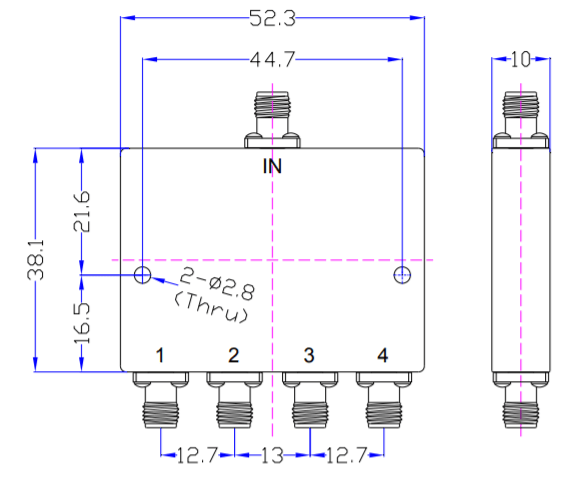

Outline Drawing (unit: mm)
