The frequency of this 4 way RF power divider (also known as 4 way RF power splitter) EPD4-E5-8E is from 0.5GHz to 8GHz with a 7.5GHz bandwidth. The maximum input power is 10 Watt.

This 4 way power divider/power splitter EPD4-E5-8E from ENRICHTEK has a typical insertion loss of 1.8dB. With a 50 Ohm impedance, the maximum input VSWR of this 4 way power divider/power splitter is 1.5, the isolation is larger than 17dB.

This 4 way power divider/power splitter EPD4-E5-8E also can be used as a 4 way power combiner, it is wildly used in commercial communication, and it.

We provide flexible 4 way power divider/power splitter customization according to customer’s requirements, such as changing the frequency, connectors, changing the electrical parameters, or mechanical structure.

Electrical Specifications

Mechanical Specifications

Environmental Specifications

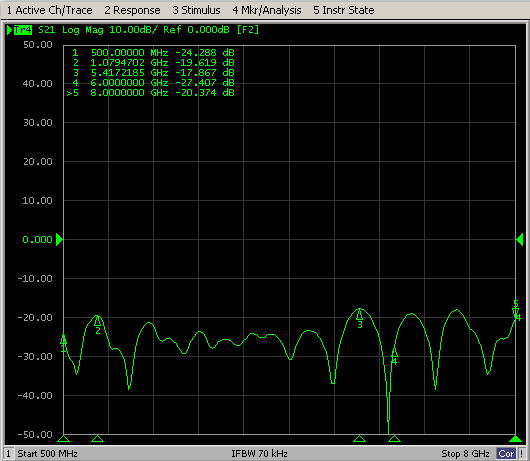

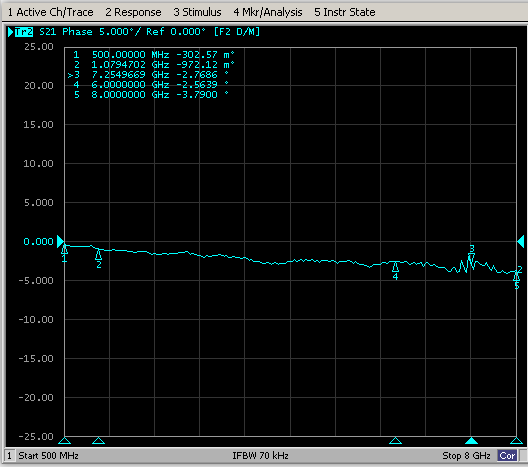

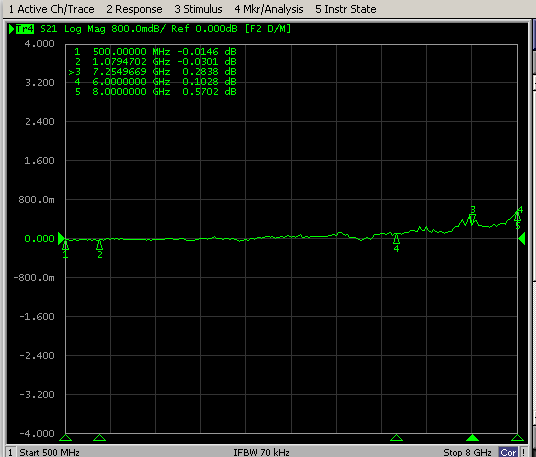

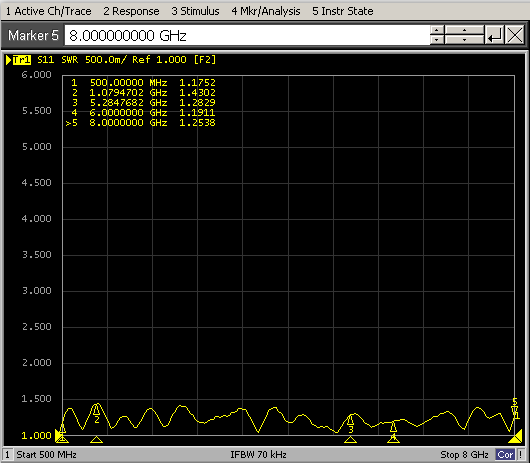

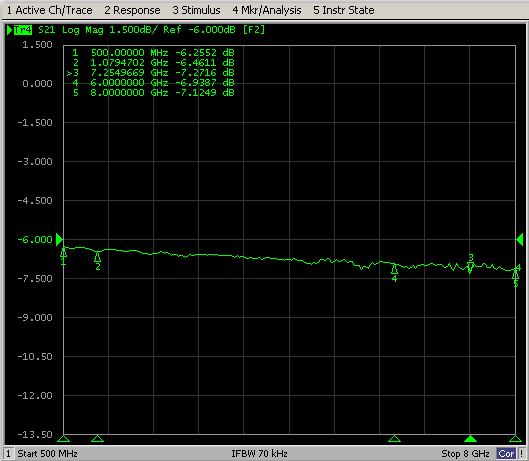

Typical Performance

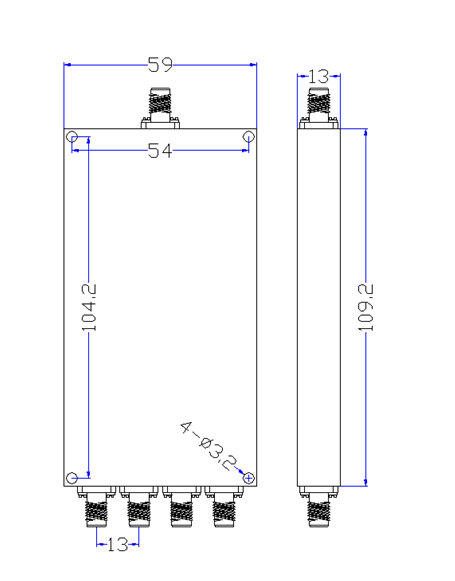

Outline Drawing (unit: mm)
