8 Way Power Divider

From 0.5GHz to 6GHz

Brand :ENRICHTEK

P/N :EPD8-E5-6E

MOQ :1

REQUEST QUOTE

The frequency of this 8 way RF power divider (also known as 8 way RF power splitter) EPD8-E5-6E is from 0.5GHz to 6GHz with a 5.5GHz bandwidth. The maximum input power is 10 Watt.

This 8 way power divider/power splitter EPD8-E5-6E from ENRICHTEK has a typical insertion loss of 2.4dB. With a 50 Ohm impedance, the maximum input VSWR of this 8 way power divider/power splitter is 1.5, the isolation is larger than 18dB.

This 8 way power divider/power splitter EPD8-E5-6E also can be used as a 8 way power combiner, it is wildly used in commercial communication, and it.

We provide flexible 8 way power divider/power splitter customization according to customer’s requirements, such as changing the frequency, connectors, changing the electrical parameters, or mechanical structure.

Electrical Specifications

Parameters	Typical Value
Frequency Range	0.5～6.0Hz
Bandwidth	5.5GHz

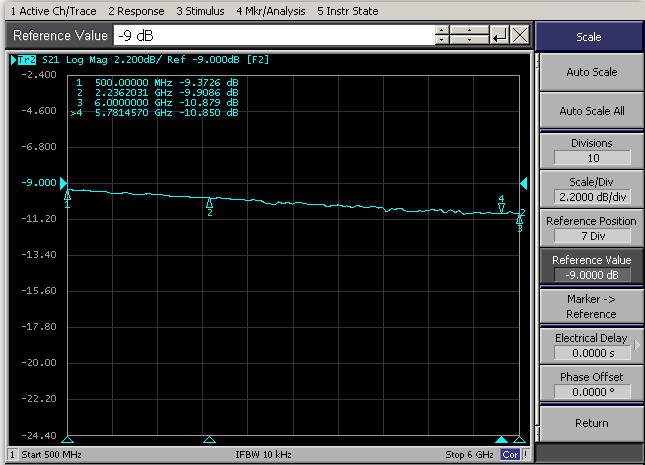

Insertion Loss（Max）	2.4dB

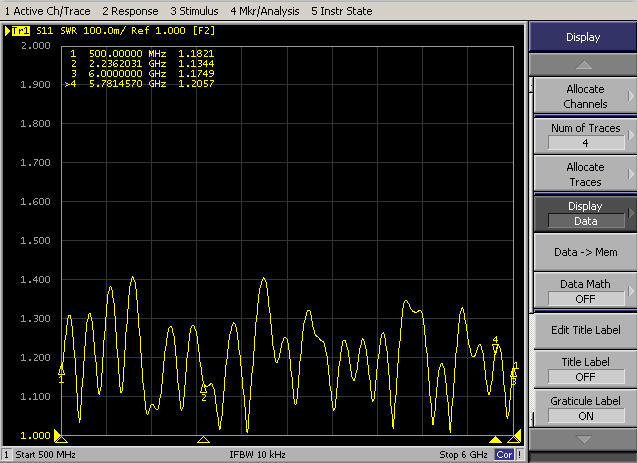

VSWR（Max）	1.5
Isolation（Min）	18dB
Amplitude Balance	0.5dB

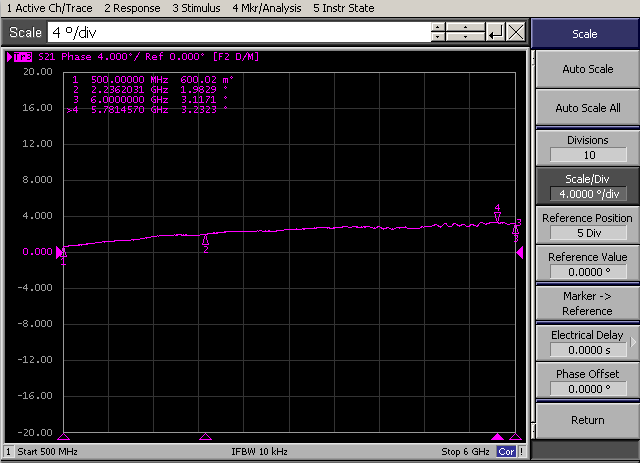

Phase Balance（Max）	±6°
Handling Power（Max）	10W
Impedance	50Ohms
