mmWave Band Pass Filter

From 21.6GHz to 22.4GHz

Brand :ENRICHTEK

P/N :MBP-21E6-22E4

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this millimeter wave comb band pass filter(also called mm wave band pass filter)MBP-21E6-22E4 is from 21.6GHz to 22.4GHz with a 800MHz bandwidth, the maximum handing power is 5 Watt(CW)

With a 50 Ohm impedance, the VSWR of this millimeter wave bandpass filter MBP-21E6-22E4 is less than 1.3.

The insertion loss of this millimeter wave band pass filter MBP-21E6-22E4 is less than 1.5dB .

The rejection is larger than 60dB at 20GHz and larger than 60dB at 24-40GHz.

The millimeter wave band pass filter MBP-21E6-22E4 has been tested and proven as all our standard millimeter wave filter products.

With high performance, good stability and consistency, RF filters/millimeter wave filters from ENRICHTEK are wildly used in education, industry and aviation.

Millimeter wave band pass filters from ENRICHTEK are customizable, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	22GHz
Pass Band Frequency	21.6~ 22.4GHz
Pass Band Insertion Loss	≤1.5dB
Pass Band Ripple	≤0.5dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥60dB @ DC ~ 20GHz	≥60dB @ 24 ~ 40GHz
Impedance	50 Ohms
Power Handling	5W Max.
Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	70169mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net weight	0.07 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

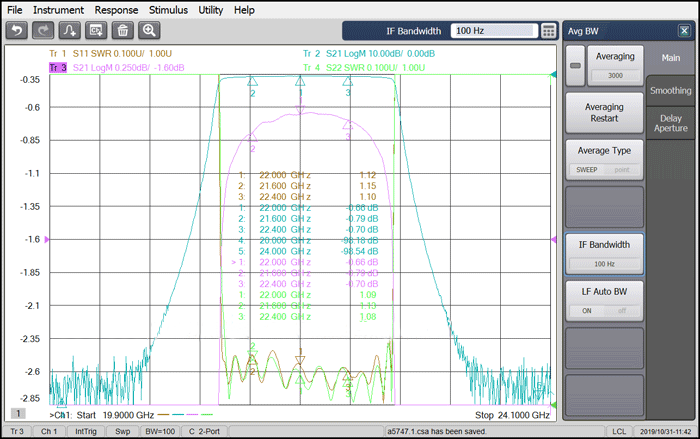

Typical Performance

21.6-22.4GHz Cavity Band Pass Filter.png

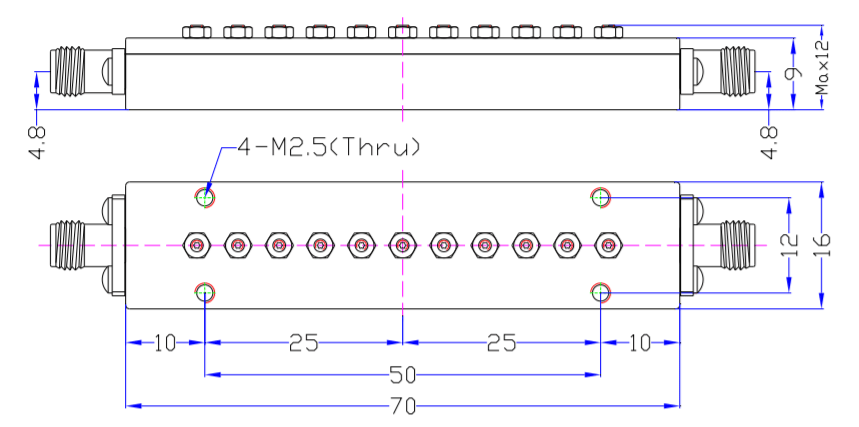

Outline Drawing (unit: mm)

21.6~22.4GHz Millimeter Wave Filter9.png
