mmWave Band Pass Filter

From 35GHz to 40GHz

Brand :ENRICHTEK

P/N :MBP-35E-40E

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this millimeter wave comb band pass filter(also called mm wave band pass filter)MBP-35E-40E is from 35GHz to 40GHz with a 5GHz bandwidth, the maximum handing power is 5 Watt(CW)
With a 50 Ohm impedance, the VSWR of this millimeter wave bandpass filter MBP-35E-40E is less than 1.5.
The insertion loss of this millimeter wave band pass filter MBP-35E-40E is less than 2.0dB .
The rejection is larger than 80dB at 34GHz and larger than 80dB at 41-54GHz.
The millimeter wave band pass filter MBP-35E-40E has been tested and proven as all our standard millimeter wave filter products.
With high performance, good stability and consistency, RF filters/millimeter wave filters from ENRICHTEK are wildly used in education, industry and aviation.
Millimeter wave band pass filters from ENRICHTEK are customizable, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	37.5GHz
Pass Band Frequency	35 ~ 40GHz
Pass Band Insertion Loss	≤2.0dB
Pass Band Ripple	≤1.1dB
Pass Band Return Loss	≥15dB
Stop Band Rejection	≥80dB @ DC ~ 34GHz	≥80dB @ 41 ~ 54GHz
Impedance	50 Ohms
Power Handling	5W Max.
Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: Stainless Steel Other screw: Stainless Steel

Mechanical Specifications

Dimensions	90168mm
Connectors	2.92mm(K)-Female
Surface Finish	Painted Black
Net weight	0.08 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

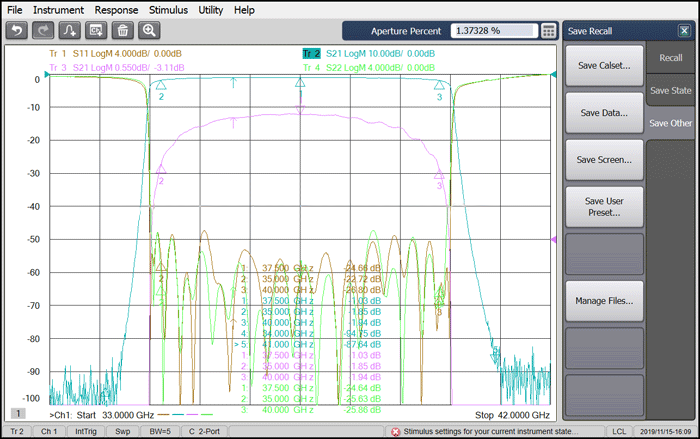

Typical Performance

35-40GHz Cavity Band Pass Filter.png

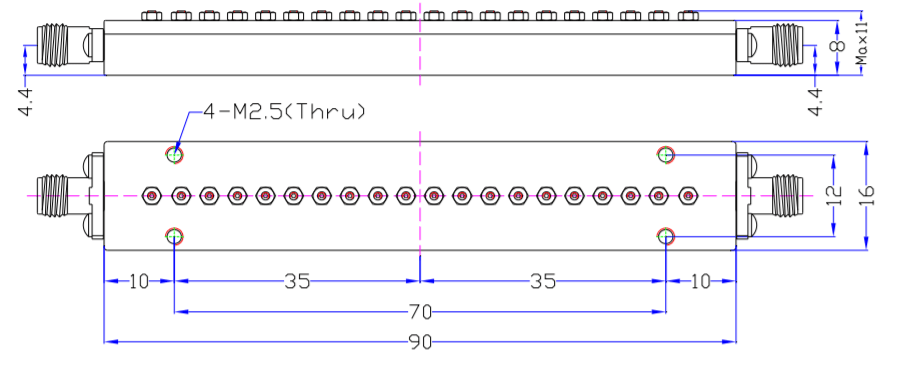

Outline Drawing (unit: mm)

35~40GHz Millimeter Wave Filter9.png
