Band Pass Filter

From 1540MHz to 2060MHz

Brand :ENRICHTEK

P/N :EBP-1E54-2E06

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this interdigital band pass filter EBP-1E54-2E06 is from 1540MHz to 2060MHz with a 520MHz bandwidth, the maximum handing power is 2 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-1E54-2E06 is less than 1.5.

The insertion loss of this band pass filter EBP-1E54-2E06 is less than 1.5dB .

The rejection is larger than 60dB@DC-1340MHz and larger than 60dB at 2260-3000MHz.

The band pass filter EBP-1E54-2E06 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency	1800MHz
Pass Band Frequency	1540～2060MHz
Pass Band Insertion Loss	≤1.5dB
Pass Band VSWR	≤1.5:1
Stop Band Rejection	≥60dB @ DC～1340MHz ≥60dB @ 2260～3000MHz
Impedance	50 ohms
Power Handling	≤2W
Surface Finish	Black Paint
Net Weight	0.0659 KG

Mechanical Specifications

Dimensions	714710mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95 ºC

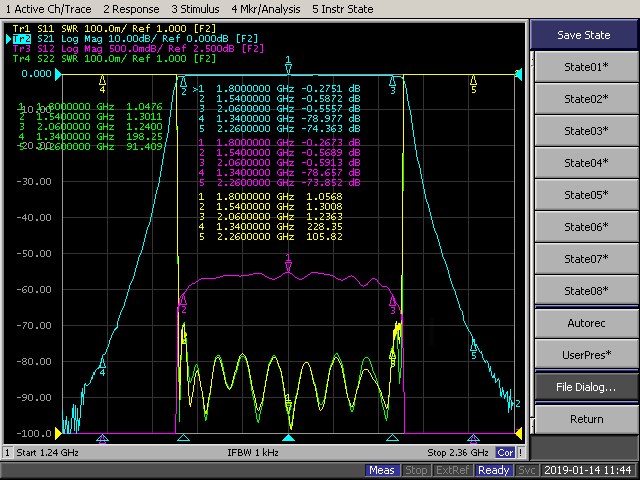

Typical Performance

1540-2060MHz Interdigital Band Pass Filter.png

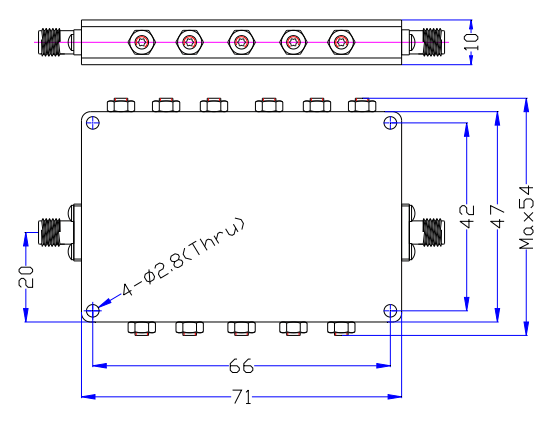

Outline Drawing (unit: mm)

1540~2060MHz Band Pass Filter9.png
