Band Pass Filter

From 1452MHz to 1492MHz

Brand :ENRICHTEK

P/N :EBP-1E452-1E492

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-1E452-1E492 is from 1452MHz to 1492MHz with a 40MHz bandwidth, the maximum handing power is 20 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-1E452-1E492 is less than 1.4.

The insertion loss of this band pass filter EBP-1E452-1E492 is less than 3.5dB .

The rejection is larger than 40dB@DC-1449.5MHz and larger than 40@1494.5-3000MHz.

The band pass filter EBP-1E452-1E492 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency	1472MHz
Pass Band Frequency	1452～1492MHz
Pass Band Insertion Loss	≤3.5dB
Pass Band VSWR	≤1.4:1
Stop Band Rejection	≥40dB @ DC～1449.5MHz ≥40dB @ 1494.5～3000MHz
Impedance	50 ohms
Input Power	≤20W
Surface Finish	Black Paint
Net Weight	0.735 KG

Mechanical Specifications

Dimensions	15711931mm
Connectors	N-Female

Environmental Specifications

Operating Temperature	-10 to +50ºC
Storage Temperature	-55 to +95 ºC

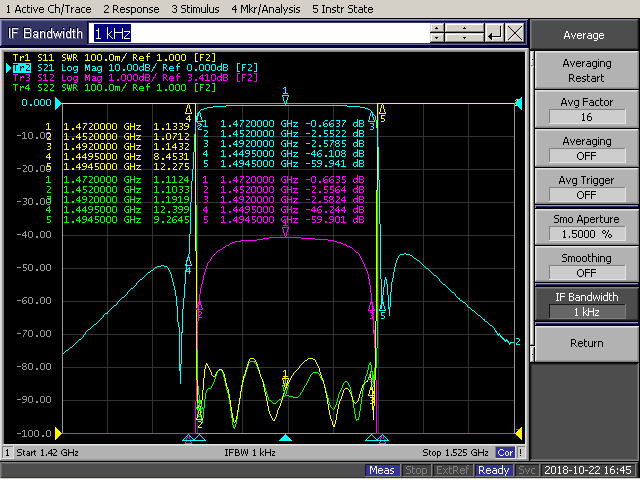

Typical Performance

1452-1492MHz Cavity Band Pass Filter.png

Outline Drawing (unit: mm)

1452~1492MHz Band Pass Filter9.png
