Band Pass Filter

From 9.875GHz to 10.125GHz

Brand :ENRICHTEK

P/N :EBP-9E875-10E125

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this waveguide band pass filter EBP-9E875-10E125 is from 9.875GHz to 10.125GHz with a 250MHz bandwidth, the maximum handing power is 50 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-9E875-10E125 is less than 1.4, the insertion loss is less than 0.5dB .

The stop band rejection is larger than 50dB@DC-9.5GHz and larger than 50dB at 10.5-12GHz.

The band pass filter EBP-9E875-10E125 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency	10GHz
Bandwidth	±125MHz (9.875～10.125GHz)
Insertion Loss	≤0.5dB
VSWR	≤1.4:1
Rejection	≥50dB @ F0±500MHz (DC～9.5GHz、10.5～12GHz)
Surface Finish	The Original Silver Color
Power	≤50W
Connectors	BJ100 (WR90)

Mechanical Specifications

Dimensions	1433314.16mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	+10 to +40ºC
Storage Temperature	-55 to +95 ºC

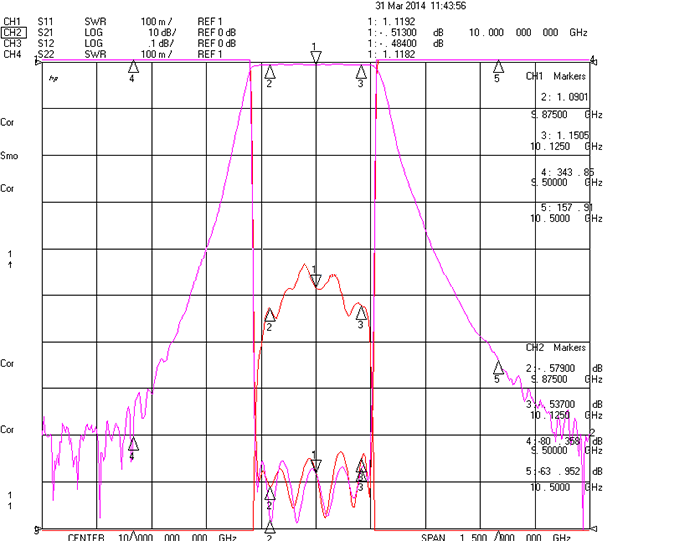

Typical Performance

9.875-10.125GHz Waveguided Band Pass Filter.png

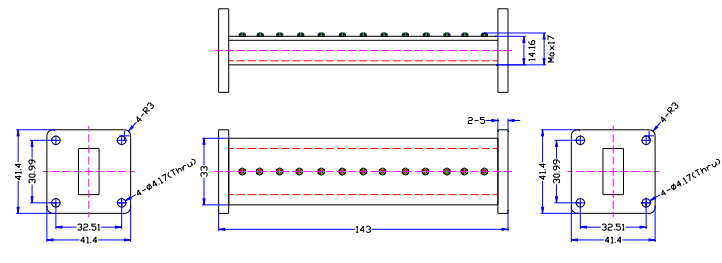

Outline Drawing (unit: mm)

9.875~10.125GHz Band Pass Filter9.png
