Band Pass Filter

From 8.7GHz to 11.55GHz

Brand :ENRICHTEK

P/N :EBP-8E7-11E55

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this interdigital band pass filter EBP-8E7-11E55 is from 92.4MHz to 112.4MHz with a 2850MHz bandwidth, the maximum handing power is 2 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-8E7-11E55 is less than 1.7.

The insertion loss of this band pass filter EBP-8E7-11E55 is less than 1.0dB and the passband ripple is less than 1.0dB.

The rejection is larger than 45dB at 5.2GHz and larger than 50dB at 13.5GHz.

The band pass filter EBP-8E7-11E55 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency	10.125GHz
Pass Band Frequency	8.7～11.55GHz
Pass Band Insertion Loss	≤1.0dB
Pass Band VSWR	≤1.7:1
Stop Band Rejection	≥45dB @ 5.2GHz ≥50dB @ 13.5GHz ≥52dB @ 14GHz
Impedance	50 ohms
Power Handling	≤2W
Surface Finish	Black Paint
Net Weight	0.035 KG

Mechanical Specifications

Dimensions	58137mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-40 to +70ºC
Storage Temperature	-55 to +95 ºC

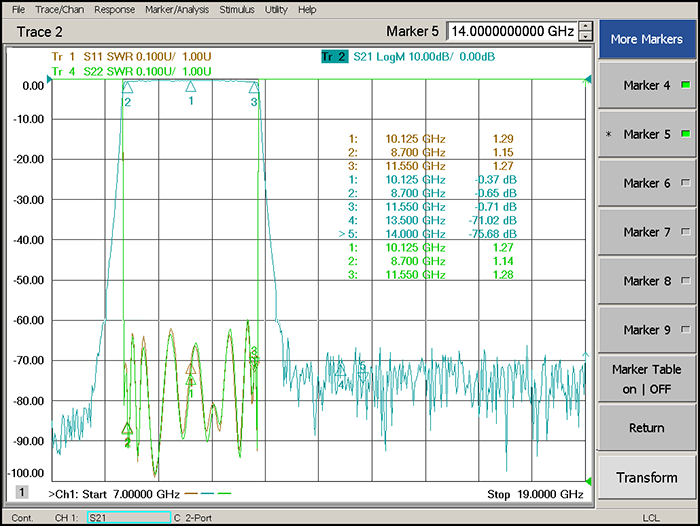

Typical Performance

8.7-11.55GHz Interdigital Band Pass Filter.png

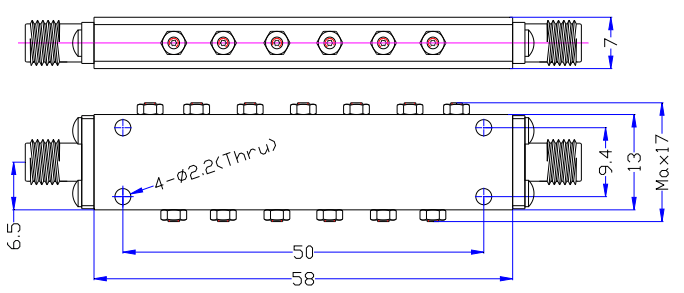

Outline Drawing (unit: mm)

8.7~11.55GHz Band Pass Filter9.png
