Band Pass Filter

From 5.15GHz to 5.85GHz

Brand :ENRICHTEK

P/N :EBP-5E15-5E85

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this comb band pass filter EBP-5E15-5E85 is from 5.15GHz to 5.85GHz with a 700MHz bandwidth, the maximum handing power is 10 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-5E15-5E85 is less than 1.3.

The insertion loss of this band pass filter EBP-5E15-5E85 is less than 1.0dB .

The stop band rejection is larger than 60dB at 4.0GHz, and larger than 60dB at 7.0GHz.

The band pass filter EBP-5E15-5E85 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK provides band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency	5.5GHz
Pass Band Frequency	5.15～5.85GHz
Pass Band Insertion Loss	≤1.0dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥60dB @ 4.0GHz ≥60dB @ 7.0GHz
Impedance	50 ohms
Power Handling	CW:≤10W ; Peak Instantaneous:≤50W
Surface Finish	Black Paint
Net Weight	0.065 KG

Mechanical Specifications

Dimensions	802015mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +80ºC
Storage Temperature	-55 to +95 ºC

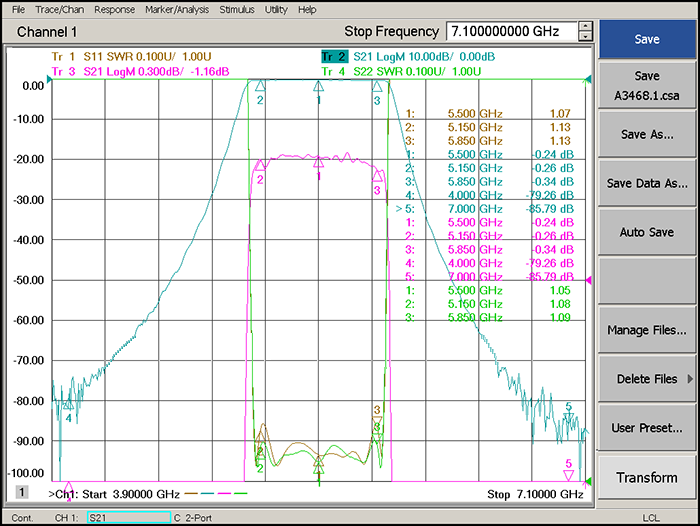

Typical Performance

5.15-5.85GHz Comb Band Pass Filter.png

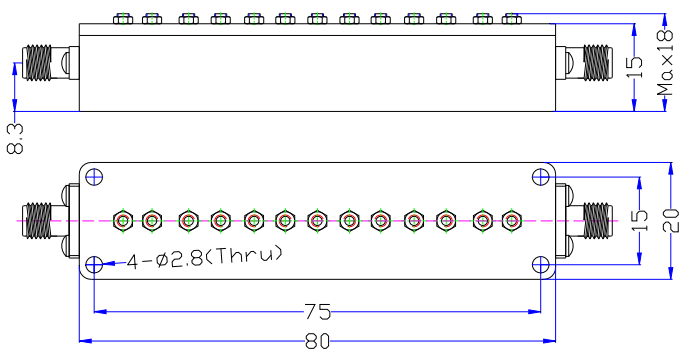

Outline Drawing (unit: mm)

5.15~5.85GHz Band Pass Filter9.png
