Band Pass Filter

From 4.7GHz to 4.9GHz

Brand :ENRICHTEK

P/N :EBP-4E7-4E9

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-4E7-4E9 is from 4.7GHz to 4.9GHz with a 200MHz bandwidth, the maximum handing power is 5 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-4E7-4E9 is less than 1.3.

The insertion loss of this band pass filter EBP-4E7-4E9 is less than 1.5dB .

The rejection is larger than 50dB@DC-4.5GHz and larger than 50dB@5.1-12GHz.

The band pass filter EBP-4E7-4E9 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	4.8GHz
Pass Band Frequency	4.7 ~ 4.9GHz
Pass Band Insertion Loss	≤1.5dB
Pass Band Return Loss	≥18dB
Stop Band Rejection	≥50dB @ DC ~ 4.5GHz	≥50dB @ 5.1 ~ 12GHz
Impedance	50 Ohms
Power Handling	5W Max.
Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	802013mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.12 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

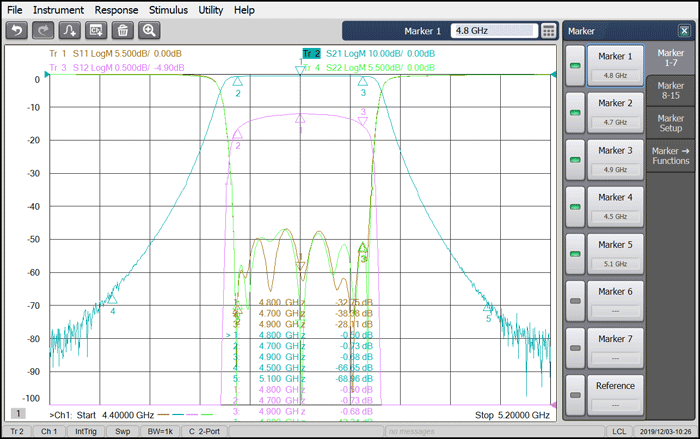

Typical Performance

Outline Drawing (unit: mm)
