Band Pass Filter

From 6.615GHz to 7.385GHz

Brand :ENRICHTEK

P/N :EBP-6E615-7E385

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-6E615-7E385 is from 6.615GHz to 7.385GHz with a 770MHz bandwidth, the maximum handing power is 5 Watt(CW)

With a 50 Ohm impedance, the VSWR of this band pass filter EBP-6E615-7E385 is less than 1.3.

The insertion loss of this band pass filter EBP-6E615-7E385 is less than 1.0dB .

The rejection is larger than 50dB@DC-6.0GHz and larger than 50dB@8.0-20GHz.

The band pass filter EBP-6E615-7E385 has been tested and proven as all our standard RF filter products.

With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	7.0GHz
3.0dB Bandwidth	Around: 770MHz (6.615 ~ 7.385GHz)
Pass Band Insertion Loss	≤1.0dB @ 6.7 ~ 7.3GHz
Pass Band VSWR	≤1.3:1 @ 6.7 ~ 7.3GHz
Stop Band Attenuation	≥50dB @ F0±1.0GHz (DC ~ 6.0GHz , 8.0 ~ 20GHz)
Number of Sections	7
Impedance	50 Ohms
Power Handling	5W Max.
Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	601610mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.06 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

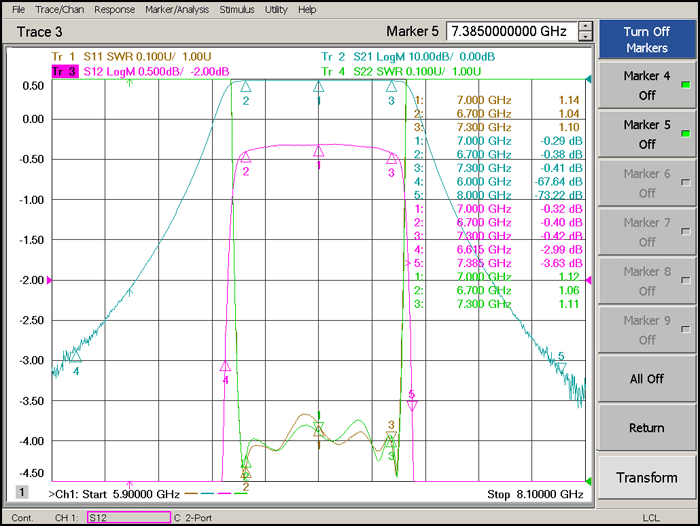

Typical Performance

6.615-7.385GHz Cavity Band Pass Filter.png

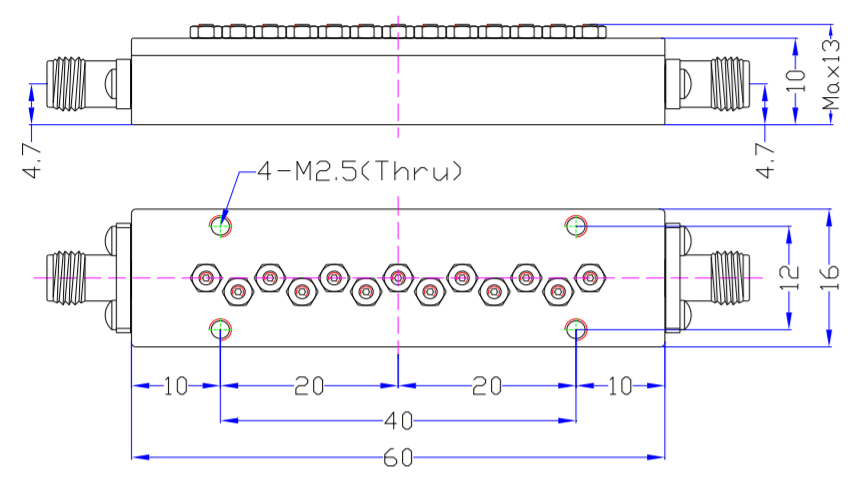

Outline Drawing (unit: mm)

6.615~7.385GHz Band Pass Filter9.png
