Band Pass Filter

From 385MHz to 395MHz

Brand :ENRICHTEK

P/N :EBP-E385-E395

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-E385-E395 is from 385MHz to 395MHz with a 10MHz bandwidth, the maximum handing power is 25 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-E385-E395 is less than 1.3.
The insertion loss of this band pass filter EBP-E385-E395 is less than 2.0dB .
The rejection is larger than 90dB@DC-370MHz and larger than 50dB@410-420MHz.
The band pass filter EBP-E385-E395 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	390MHz
Pass Band Bandwidth	10MHz (385 ~ 395MHz)
Pass Band Insertion Loss	≤2.0dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥90dB @ DC ~ 370MHz	≥90dB @ 410 ~ 420MHz
Impedance	50 Ohms
Power Handling	25W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	11811868mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	1.095 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

Typical Performance

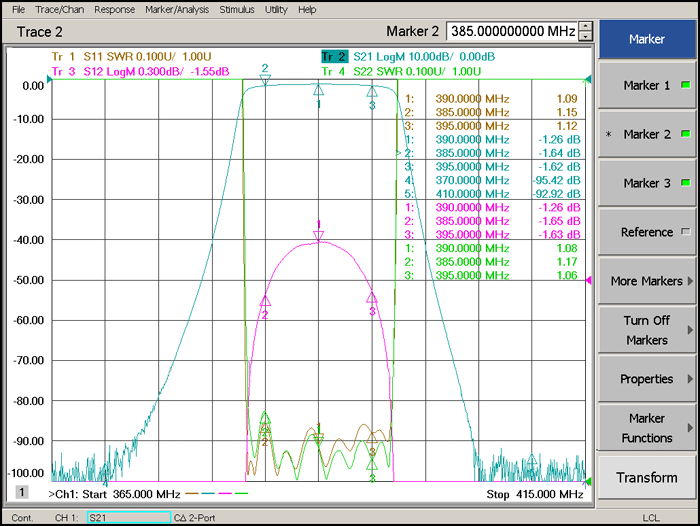

385-395MHz Cavity Band Pass Filter.png

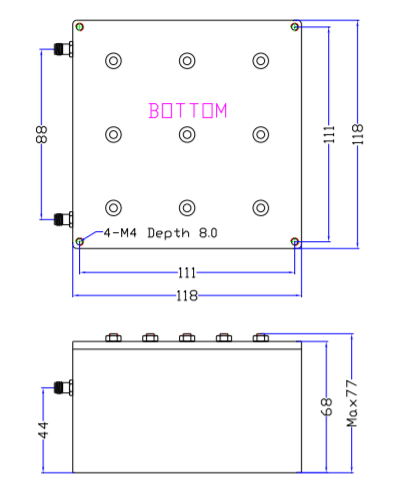

Outline Drawing (unit: mm)
