Band Pass Filter

From 892.5MHz to 902.5MHz

Brand :ENRICHTEK

P/N :EBP-E892-E902

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-E892-E902 is from 892.5MHz to 902.5MHz with a 10MHz bandwidth, the maximum handing power is 20 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-E892-E902 is less than 1.3.
The insertion loss of this band pass filter EBP-E892-E902 is less than 1.9dB .
The rejection is larger than 17dB@DC-890MHz and larger than 17dB@910-2700MHz.
The band pass filter EBP-E892-E902 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	897.5MHz
Pass Band Frequency	±5.0MHz (892.5 ~ 902.5MHz)
Pass Band Insertion Loss	≤1.9dB
Pass Band Ripple	≤1.0dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥17dB @ DC ~ 890MHz	≥17dB @ 910 ~ 2700MHz
Impedance	50 Ohms
Power Handling	20W (CW) Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	1379342mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.635 KG

Environmental Specifications

Operating Temperature	0 to + 50ºC
Storage Temperature	-55 to +95ºC

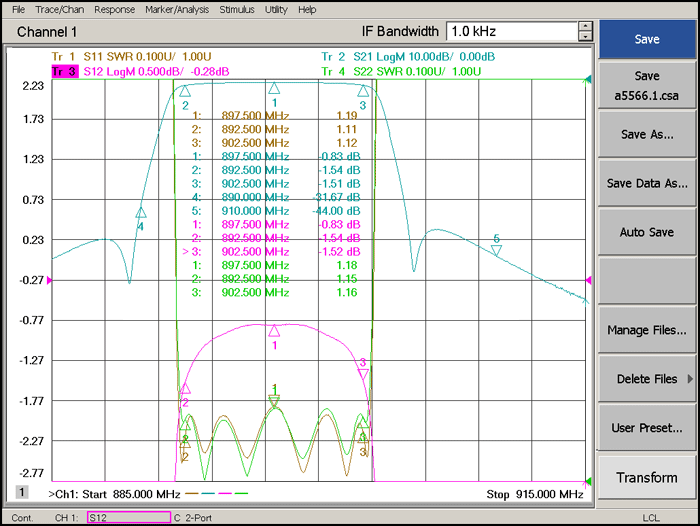

Typical Performance

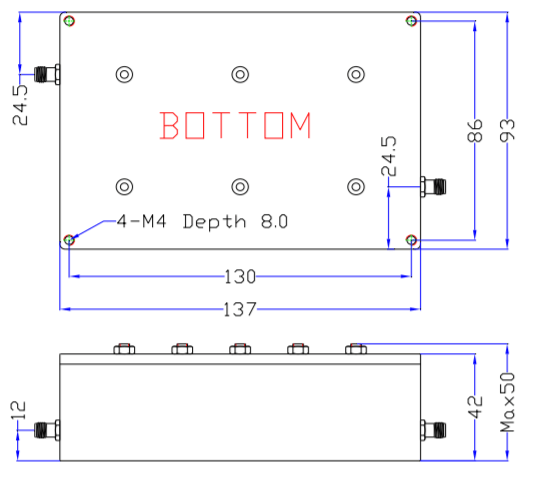

Outline Drawing (unit: mm)

892.5~902.5MHz Band Pass Filter9.png
