Band Pass Filter

From 900MHz to 930MHz

Brand :ENRICHTEK

P/N :EBP-E9-E93

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-E9-E93 is from 900MHz to 930MHz with a 30MHz bandwidth, the maximum handing power is 30 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-E9-E93 is less than 1.3.
The insertion loss of this band pass filter EBP-E9-E93 is less than 0.6dB .
The rejection is larger than 40dB@DC-855MHz and larger than 40dB@975-20000MHz.
The band pass filter EBP-E9-E93 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency (F0)	915MHz
Pass Band Frequency	900～930MHz
Pass Band Insertion Loss	≤0.6dB
Pass Band Ripple	≤0.3dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥40dB @ F0±60MHz (DC～855MHz、975～2000MHz)
Impedance	50 ohms
Power Handling	30W

Mechanical Specifications

Dimensions	1385330mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.28 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

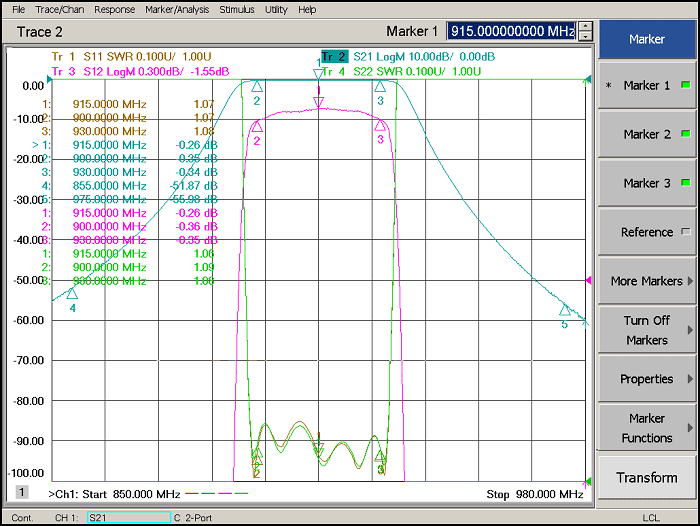

Typical Performance

900-930MHz Cavity Band Pass Filter.png

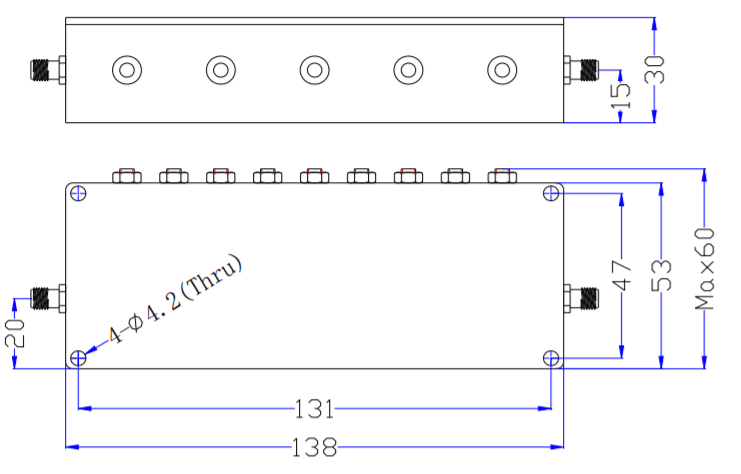

Outline Drawing (unit: mm)
