Band Pass Filter

From 1920MHz to 1980MHz

Brand :ENRICHTEK

P/N :EBP-1E92-1E98

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-1E92-1E98 is from 1920MHz to 1980MHz with a 60MHz bandwidth, the maximum handing power is 20 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-1E92-1E98 is less than 1.3.
The insertion loss of this band pass filter EBP-1E92-1E98 is less than 2.0dB .
The rejection is larger than 40dB@DC-1910MHz and larger than 40dB@1990-3000MHz.
The band pass filter EBP-1E92-1E98 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	1950MHz
Pass Band Frequency	1920 ~ 1980MHz
Pass Band Insertion Loss	≤2.0dB
Pass Band VSWR	≤1.3:1
Stop Band Attenuation	≥40dB @ DC ~ 1910MHz	≥40dB @ 1990 ~ 3000MHz
Impedance	50 Ohms
Power	20W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	929226mm
Connectors	N-Female
Surface Finish	Painted Black
Net Weight	0.37 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

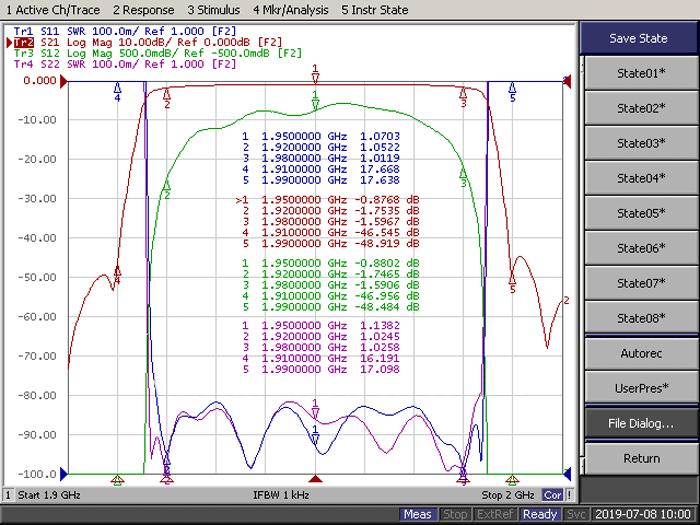

Typical Performance

1920-1980MHz Cavity Band Pass Filter.png

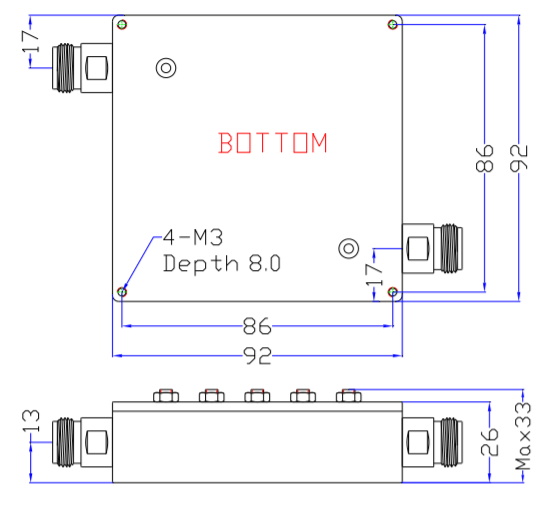

Outline Drawing (unit: mm)

1920~1980MHz Band Pass Filter9.png
