Band Pass Filter

From 2085MHz to 2115MHz

Brand :ENRICHTEK

P/N :EBP-2E085-2E115

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-2E085-2E115 is from 2085MHz to 2115MHz with a 30MHz bandwidth, the maximum handing power is 5 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-2E085-2E115 is less than 1.3.
The insertion loss of this band pass filter EBP-2E085-2E115 is less than 3.0dB .
The rejection is larger than 60dB@DC-2040MHz and larger than 60dB@2160-6000MHz.
The band pass filter EBP-2E085-2E115 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	2100MHz
Pass Band Frequency	2085 ~ 2115MHz
Pass Band Insertion Loss	≤3.0dB
Pass Band Ripple	≤0.7dB
Pass Band VSWR	≤1.3:1
Stop Band Attenuation	≥60dB @ DC ~ 2040MHz	≥60dB @ 2160 ~ 6000MHz
Impedance	50 Ohms
Power Handling	5W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	1132520mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.09 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

Typical Performance

2085-2115MHz Cavity Band Pass Filter.png

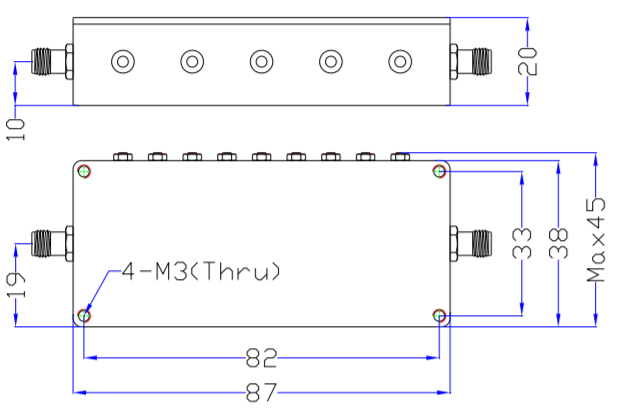

Outline Drawing (unit: mm)

2085~2115MHz Band Pass Filter9.png
