Band Pass Filter

From 2200MHz to 2275MHz

Brand :ENRICHTEK

P/N :EBP-2E2-2E275

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-2E2-2E275 is from 2200MHz to 2275MHz with a 75MHz bandwidth, the maximum handing power is 20 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-2E2-2E275 is less than 1.3.
The insertion loss of this band pass filter EBP-2E2-2E275 is less than 1.2dB .
The rejection is larger than 35dB@DC-2185MHz and larger than 35dB@2290-5000MHz.
The band pass filter EBP-2E2-2E275 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.

ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	2237.5MHz
Pass Band Frequency	2200 ~ 2275MHz
Pass Band Insertion Loss	≤1.2dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥35dB @ DC ~ 2185MHz	≥35dB @ 2290 ~ 5000MHz
Impedance	50 Ohms
Power Handling	20W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	1417326mm
Connectors	N-Female
Surface Finish	Painted Black
Net Weight	0.405 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

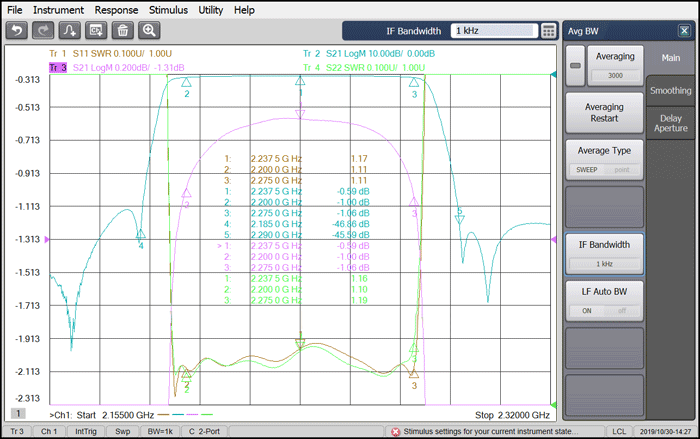

Typical Performance

2200-2275MHz Cavity Band Pass Filter.png

Outline Drawing (unit: mm)
