Band Pass Filter

From 2400MHz to 2485MHz

Brand :ENRICHTEK

P/N     :EBP-2E4-2E485

MOQ  :1

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-2E4-2E485 is from 2400MHz to 2485MHz with a 85MHz bandwidth, the maximum handing power is 100 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-2E4-2E485 is less than 1.3.
The insertion loss of this band pass filter EBP-2E4-2E485 is less than 0.6dB .
The rejection is larger than 40dB@DC-2320MHz and larger than 40dB@2565-5000MHz.
The band pass filter EBP-2E4-2E485 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters

Typical Value

Center Frequency(F0)

2442.5MHz

Pass Band Frequency

2400 ~ 2485MHz

Pass Band Insertion Loss

≤0.6dB

Stop Band Attenuation

≥40dB @ Fc±80MHz (DC ~ 2320MHz , 2565 ~ 5000MHz)

Impedance

50 Ohms

Power

100W Max.

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Tuning screw: H62 Copper alloy

Resonant column: H59 Copper alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

Mechanical Specifications

Dimensions

155*30*30mm

Connectors

SMA-Female

Surface Finish

Painted Black

Net Weight

0.24 KG

Environmental Specifications

Operating Temperature

-30 to +70ºC

Storage Temperature

-55 to +95ºC

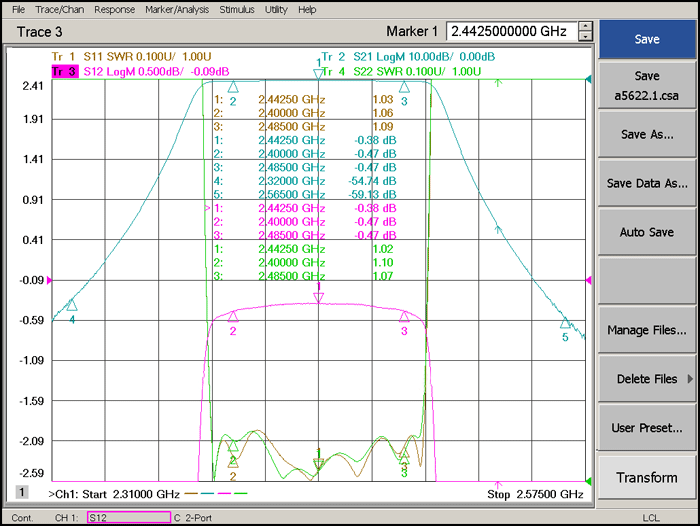

Typical Performance

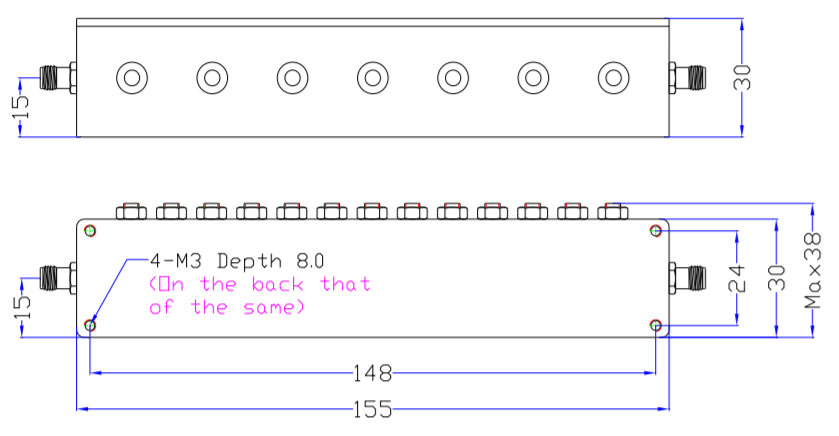

Outline Drawing (unit: mm)
