Band Pass Filter

From 3450MHz to 3550MHz

Brand :ENRICHTEK

P/N :EBP-3E45-3E55

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-3E45-3E55 is from 3450MHz to 3550MHz with a 100MHz bandwidth, the maximum handing power is 5.0 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-3E45-3E55 is less than 1.3.
The insertion loss of this band pass filter EBP-3E45-3E55 is less than 1.5dB .
The rejection is larger than 80dB@DC-3000MHz and larger than 80dB@4000-10000MHz.
The band pass filter EBP-3E45-3E55 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	3500MHz
Pass Band Frequency	3450 ~ 3550MHz
Pass Band Insertion Loss	≤1.5dB
Pass Band VSWR	≤1.3:1
Stop Band Attenuation	≥80dB @ DC ~ 3000MHz ≥70dB @ 3000 ~ 3200MHz	≥70dB @ 3800 ~ 4000MHz ≥80dB @ 4000 ~ 10000MHz
Impedance	50 Ohms
Power Handling	5.0W Max.
Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: Stainless Steel Other screw: Stainless Steel

Mechanical Specifications

Dimensions	902115mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.145 KG

Environmental Specifications

Operating Temperature	-30 to +70ºC
Storage Temperature	-55 to +95ºC

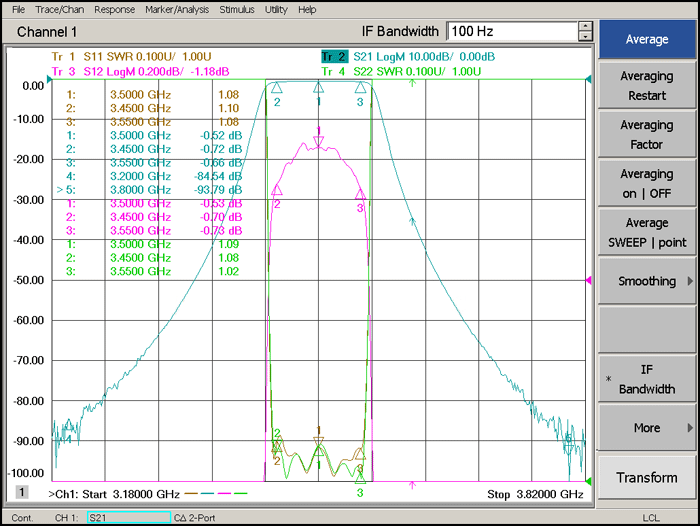

Typical Performance

3450-3550MHz Cavity Band Pass Filter.png

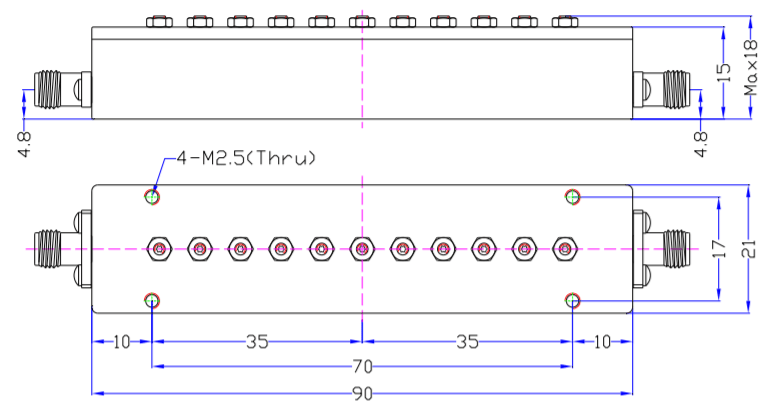

Outline Drawing (unit: mm)
