Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.

The frequency of this cavity band pass filter EBP-3E705-3E795 is from 3705MHz to 3795MHz with a 90MHz bandwidth, the maximum handing power is 10 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-3E705-3E795 is less than 1.3.
The insertion loss of this band pass filter EBP-3E705-3E795 is less than 2.0dB .
The rejection is larger than 35dB@DC-3645MHz and larger than 35dB@3855-7500MHz.
The band pass filter EBP-3E705-3E795 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Mechanical Specifications

Environmental Specifications

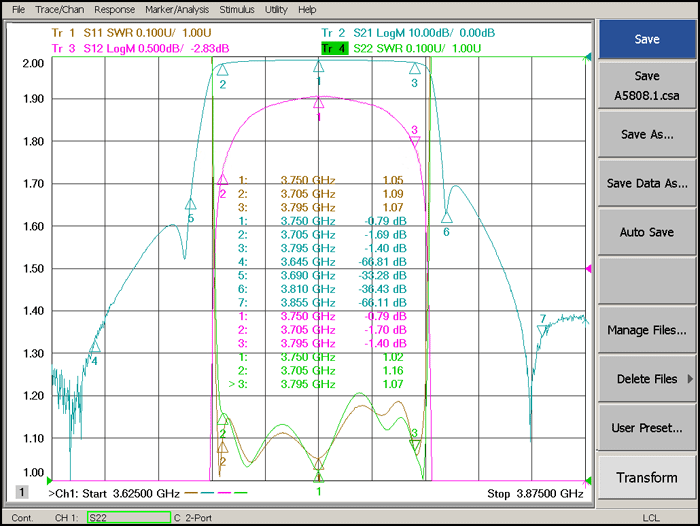

Typical Performance

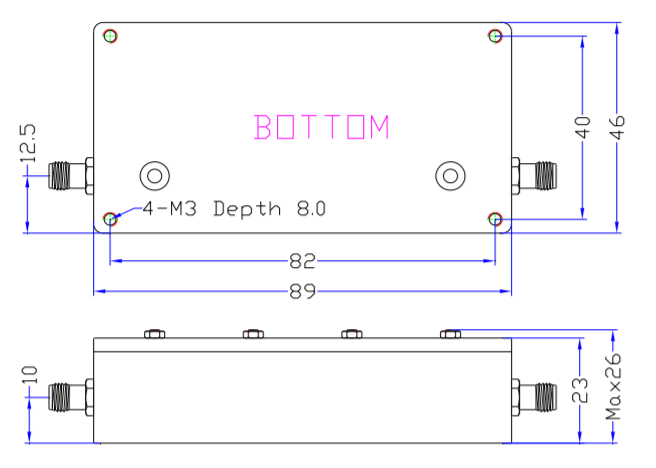

Outline Drawing (unit: mm)
