Band Pass Filter

From 3845MHz to 3905MHz

Brand :ENRICHTEK

P/N :EBP-3E845-3E905

MOQ :1

REQUEST QUOTE

Band pass filter is a kind of RF filter used to eliminate unwanted side bands and remove spurious interference and noise.
The frequency of this cavity band pass filter EBP-3E845-3E905 is from 3845MHz to 3905MHz with a 60MHz bandwidth, the maximum handing power is 50 Watt(CW)
With a 50 Ohm impedance, the VSWR of this band pass filter EBP-3E845-3E905 is less than 1.3.
The insertion loss of this band pass filter EBP-3E845-3E905 is less than 0.6dB .
The rejection is larger than 40dB@DC-3785MHz and larger than 40dB@3970-8500MHz.
The band pass filter EBP-3E845-3E905 has been tested and proven as all our standard RF filter products.
With high performance, good stability and consistency, RF filters from ENRICHTEK are wildly used in education, industry and aviation.
ENRICHTEK supports band pass filter customization, such as changing the electrical parameters, the cutoff frequency, mechanical structure, or connectors etc.

Electrical Specifications

Parameters	Typical Value
Center Frequency(F0)	3875MHz
Pass Band Frequency	3845 ~ 3905MHz
Pass Band Insertion Loss	≤0.6dB
Pass Band VSWR	≤1.3:1
Stop Band Rejection	≥40dB @ DC ~ 3785MHz	≥40dB @ 3970 ~ 8500MHz
Impedance	50 Ohms
Power	50W Max.
Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel

Mechanical Specifications

Dimensions	1027023mm
Connectors	SMA-Female
Surface Finish	Painted Black
Net Weight	0.24 KG

Environmental Specifications

Operating Temperature	-20 to +60ºC
Storage Temperature	-55 to +95ºC

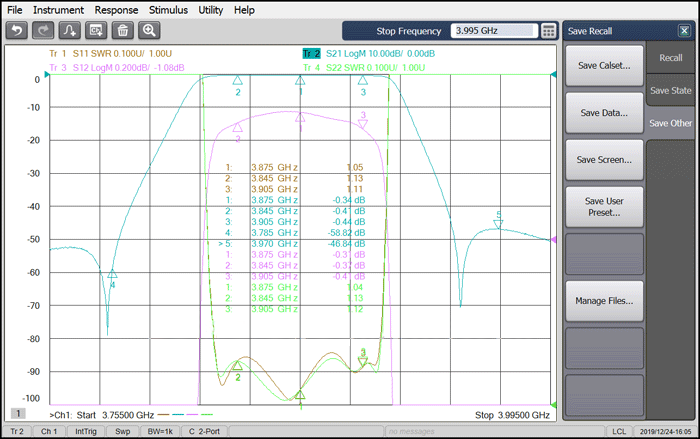

Typical Performance

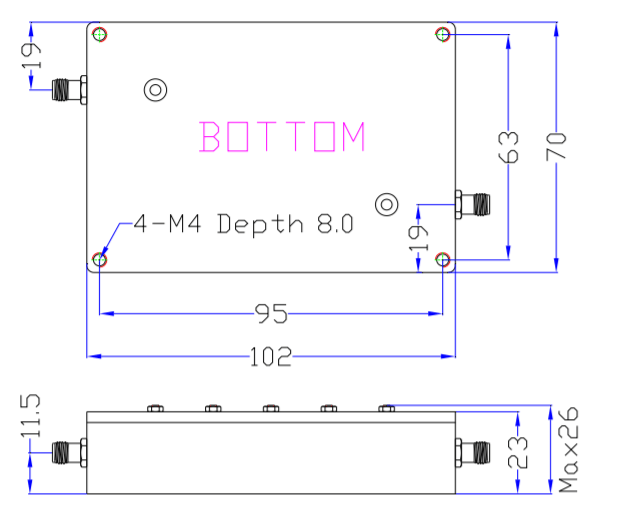

Outline Drawing (unit: mm)
