Low Pass Filter

From DC to 50 MHz

Brand :ENRICHTEK

P/N :ELP-E05

MOQ :1

REQUEST QUOTE

ENRICHTEK 's low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The frequency of this LC low pass filter ELP-E05 from ENRICHTEK is from DC to 50 MHz with a 50 MHz passband. The maximum handing power is 1 Watt(CW).With a 50 Ohm impedance, the maximum VSWR of this LC low pass filter ELP-E05 is 1.3.The maximum insertion loss of this LC low pass filter ELP-E05 is 1.0dB and the passband ripple is less than 0.7dB. The rejection at 55MHz-500MHz is greater than 50dB.

With wide operating temperature, high stability and consistency, low pass filters from ENRICHTEK are widely used in education, industrial, aviation and military uses.

Electrical Specifications

Description	Typical
Frequency	DC-50MHz
Bandwidth	50MHz
Impedance	50Ohms
Passband Insertion Loss	1.0dBMax.
Passband Ripple	<0.7dB
VSWR	1.3:1 Max
Rejection 1	@55-500MHz>50dB
Power Handling	1(CW)

Mechanical Specifications

Dimensions	20x9.9x9.9(mm)
Connectors	A1 Package

Environmental Specifications

Operating Temperature	-45 to +75ºC
Storage Temperature	-55 to +80 ºC

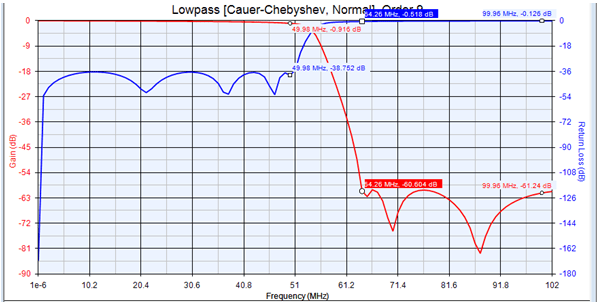

Typical Performance

DC~50MHz Low Pass Filter.png

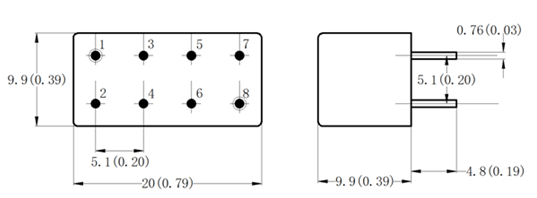

Outline Drawing (unit: mm)

DC~50MHz Low Pass Filter9.png
