Low Pass Filter

From DC to 150MHz

Brand :ENRICHTEK

P/N :ELP-E15

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The frequency of this LC low pass filter ELP-E15 from ENRICHTEK is from DC to 150 MHz with a 150 MHz passband. The maximum handing power is 1 Watt(CW).The passband ripple is less than 0.7dB and the maximum insertion loss of this LC low pass filter ELP-E15 is 1.0dB. The rejection at 195MHz-500MHz is greater than 50dB.With a 50 Ohm impedance, the maximum VSWR of this LC low pass filter ELP-E15 is 1.3.

Low pass filters from ENRICHTEK are widely used in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Description	Typical
Frequency	DC-150MHz
Bandwidth	150MHz
Impedance	50Ohms
Passband Insertion Loss（dB）	1.0Max.
Passband Ripple	<0.7dB
VSWR	1.3:1 Max
Rejection 1	@195-500MHz>50dB
Power Handling	1(CW)

Mechanical Specifications

Dimensions	22x12x8.5(mm)
Connectors	SMT

Environmental Specifications

Operating Temperature	-45 to +75ºC
Storage Temperature	-55 to +80 ºC

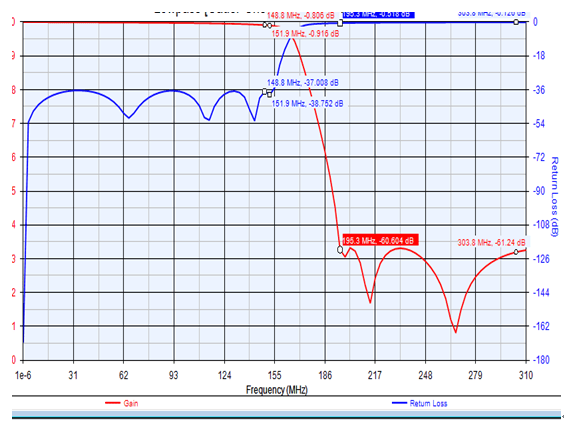

Typical Performance

DC~150MHz Low Pass Filter.png

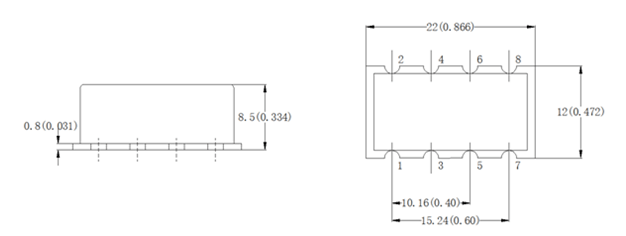

Outline Drawing (unit: mm)

DC~150MHz Low Pass Filter9.png
