Low Pass Filter

From DC to 10 MHz

Brand :ENRICHTEK

P/N :ELP-E01

MOQ :1

REQUEST QUOTE

The frequency of this LC low pass filter ELP-E01 from ENRICHTEK is from DC to 10 MHz with a 10 MHz passband. The maximum handing power is 1 Watt(CW).

The maximum insertion loss of this LC low pass filter ELP-E01 is 0.8dB and the passband ripple is less than 0.7dB. The rejection at 13-100MHz is greater than 50dB.With a 50 Ohm impedance, the maximum VSWR of this LC low pass filter ELP-E01 is 1.3.

ENRICHTEK provides low pass filter design service. Our low pass filter/high pass filter/bandpass filter/band stop filter is customizable to fit your requirements best.

Electrical Specifications

Description	Typical
Frequency	DC-10MHz
Bandwidth	10MHz
Impedance	50Ohms
Passband Insertion Loss（dB）	0.8Max.
Passband Ripple	<0.7dB
VSWR	1.3:1 Max
Rejection 1	@13-100MHz>50dB
Power Handling	1(CW)

Mechanical Specifications

Dimensions	45x14x14(mm)
Input Connectors	SMA-Femle

Environmental Specifications

Operating Temperature	-45 to +75ºC
Storage Temperature	-55 to +80 ºC

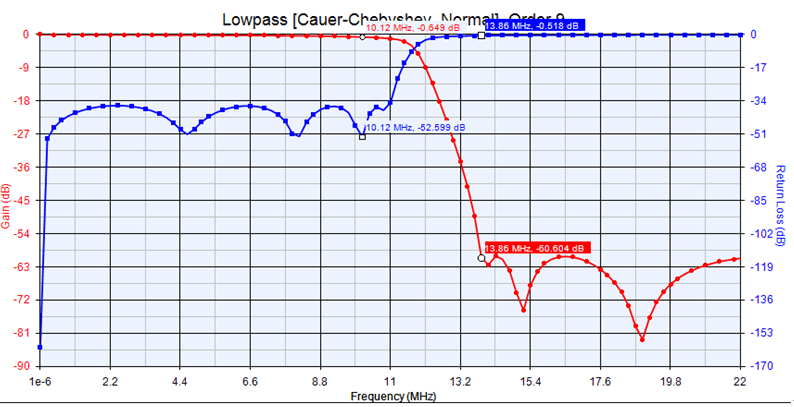

Typical Performance

DC~10MHz Low Pass Filter.png

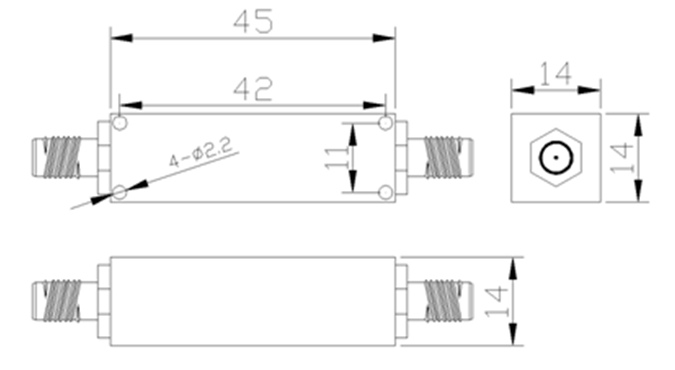

Outline Drawing (unit: mm)

DC~10MHz Low Pass Filter9.png
