Low Pass Filter

from DC to 21GHz

Brand :ENRICHTEK

P/N :ELP-21E

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below designed frequency, and reject signals higher than the cutoff frequency.

The frequency of this suspended stripline low pass filter ELP-21E0 from ENRICHTEK is from DC to 21 GHz with a 21 GHz passband . The maximum handing power is 15 Watt(CW).With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-21E0 is 1.6, the maximum insertion loss is 3 dB and the passband ripple is less than 1 dB.The stop band attenuation of this high pass filter ELP-21E0 is larger than 50dB at 22.2～27GHz

ENRICHTEK provides low pass filter design service. Our low pass filter/high pass filter/bandpass filter/band stop filter is customizable to fit your requirements best.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	21GHz
Pass Band Frequency	DC～21GHz
Pass Band Insertion Loss	≤1.0dB @ DC～20GHz ≤3.0dB @ 20～21GHz
Pass Band VSWR	≤1.6:1
Stop Band Attenuation	≥50dB @ 22.2～27GHz
Impedance	50 ohms
Power	≤15W

Mechanical Specifications

Dimensions	171710mm
Connectors	SMA Female
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.0135 KG

Environmental Specifications

Operating Temperature	-55 ºC to+85 ºC
Storage Temperature	-55 ºC to +95 ºC

Typical Performance

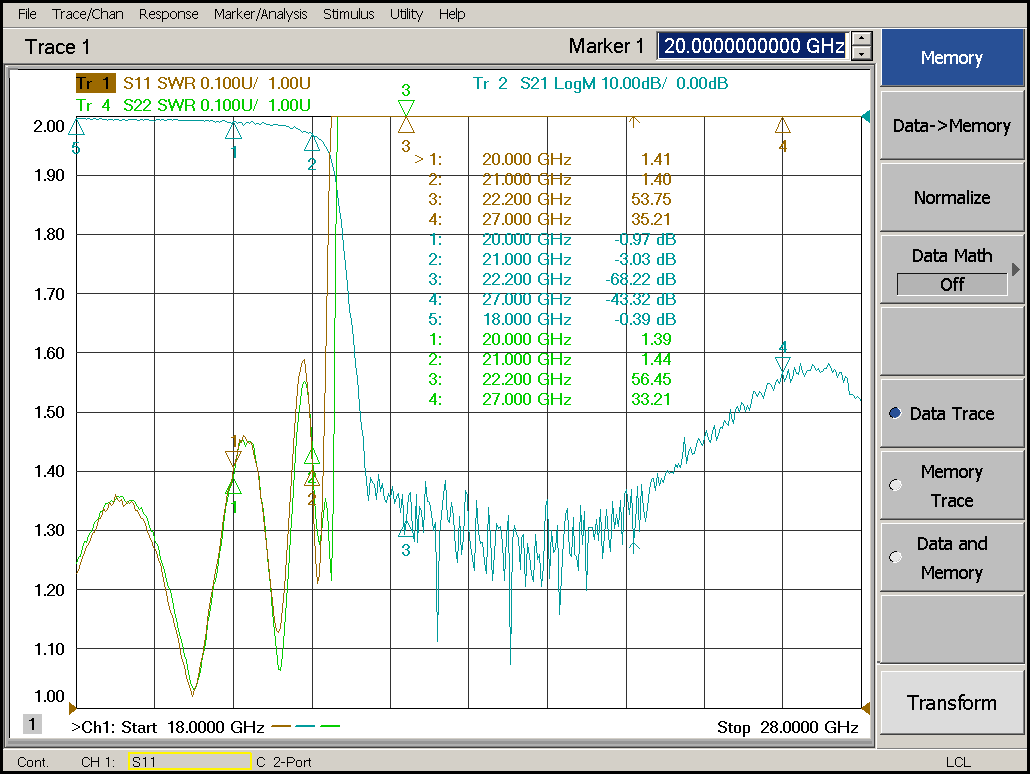

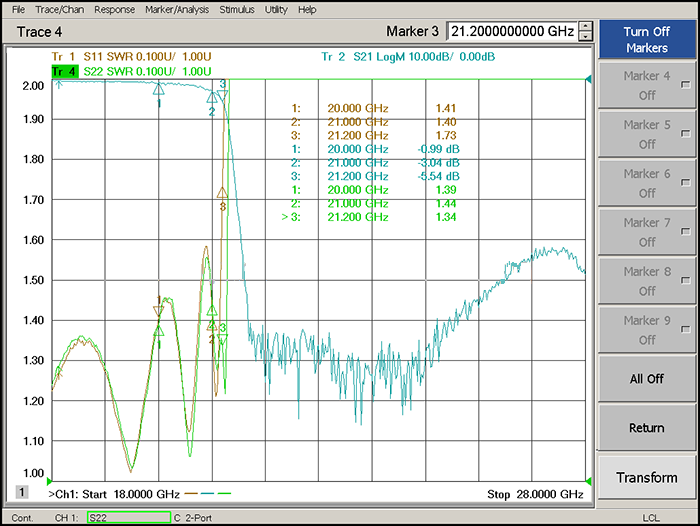

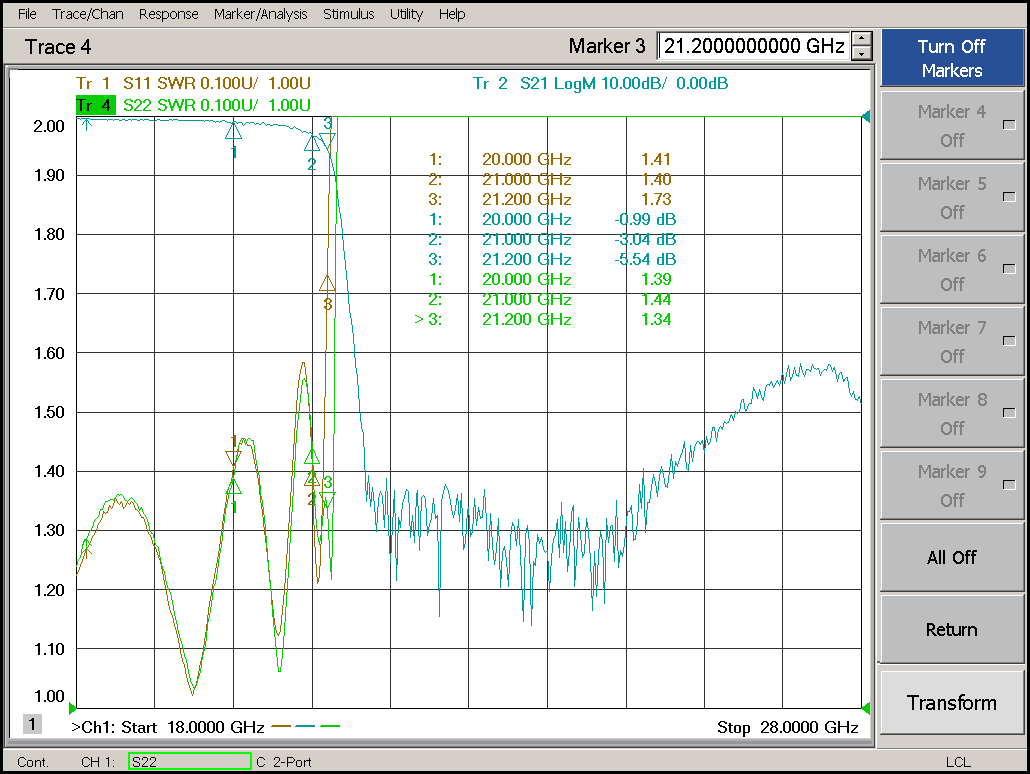

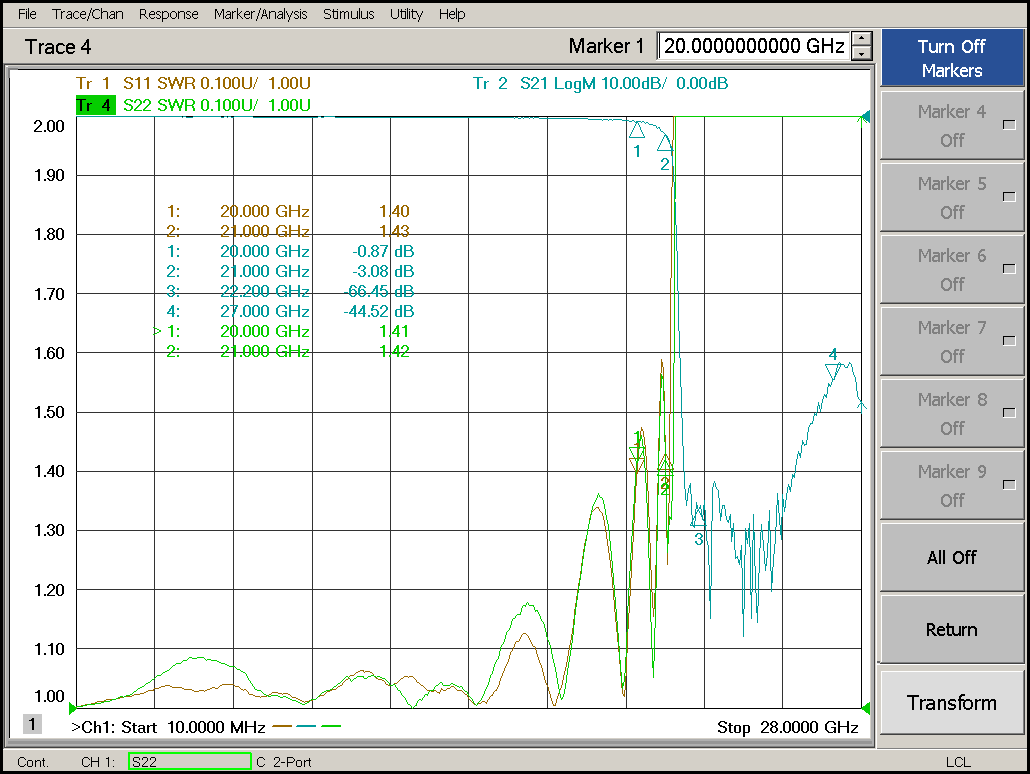

DC~21GHz Low Pass Filter ELP-21E0_Test Curve (1).png

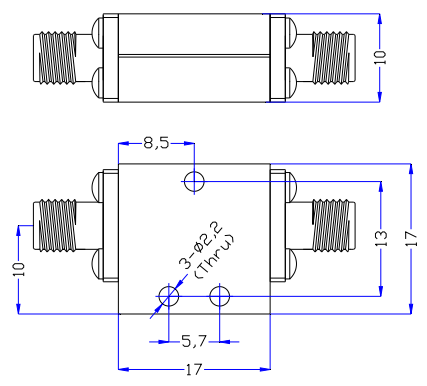

Outline Drawing (unit: mm)
