Low Pass Filter

From DC to 1.25GHz

Brand :ENRICHTEK

P/N :ELP-1E25

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-1E25 from ENRICHTEK is from DC to 1.25 GHz. The maximum handing power is 15 Watt(CW).The passband ripple is less than 1.0dB and the maximum insertion loss of this low pass filter ELP-1E25 is 1.0dB@DC~1.15Ghz. The rejection at 1.52GHz-4.7GHz is larger than 60dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-1E25 is 1.3.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	1.25GHz
Pass Band Frequency	DC～1.25GHz
Pass Band Insertion Loss	≤1.0dB @ DC～1.15GHz ≤1.5dB @ 1.15～1.25GHz
Pass Band VSWR	≤1.3:1
Stop Band Attenuation	≥60dB @ 1.52～4.7GHz
Impedance	50 ohms
Power	≤15W

Mechanical Specifications

Dimensions	662710mm
Connectors	SMA-Female
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.05 KG

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

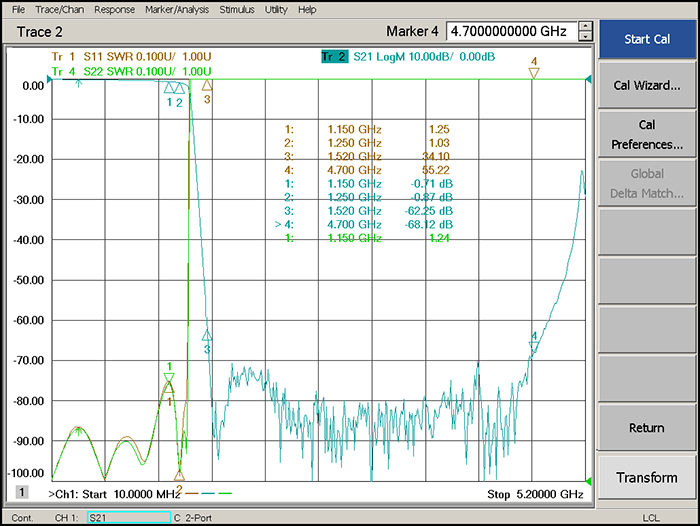

Typical Performance

DC-1.25GHz Suspended Stripline Low Pass Filter.png

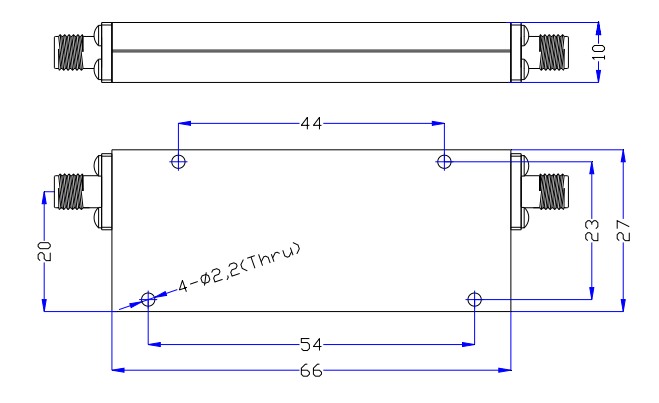

Outline Drawing (unit: mm)
