Low Pass Filter

From DC to 4.5GHz

Brand :ENRICHTEK

P/N :ELP-4E5

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-4E5 from ENRICHTEK is from DC to 4.5 GHz. The maximum handing power is 15 Watt(CW).The passband ripple is less than 1.0dB and the maximum insertion loss of this low pass filter ELP-4E5 is 1dB@DC~4.3GHz. The rejection at 5.1GHz-13.7GHz is larger than 60dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-4E5 is 1.3.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	4.5GHz
Pass Band Frequency	DC～4.5GHz
Pass Band Insertion Loss	≤1.0dB @ DC～4.3GHz ≤1.5dB @ 4.3～4. 5GHz
Pass Band VSWR	≤1.3:1
Stop Band Attenuation	≥60dB @ 5.1～13.7GHz
Impedance	50 ohms
Power	≤15W

Mechanical Specifications

Dimensions	342310mm
Connectors	SMA-Female
Net weight	0.025 KG
Surface Finish	Guided Oxygen or Black Paint

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

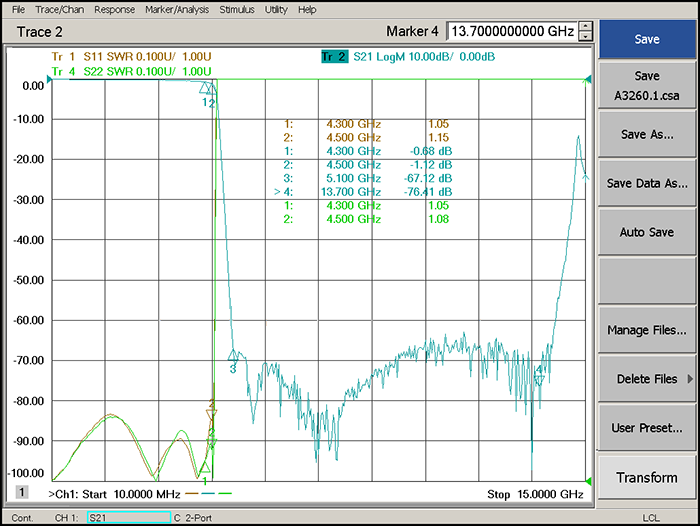

Typical Performance

DC-4.5GHz Suspended Stripline Low Pass Filter.png

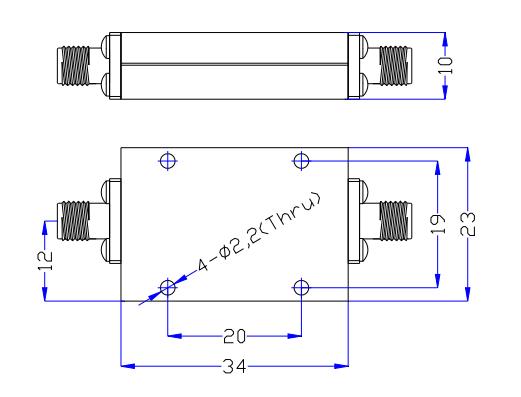

Outline Drawing (unit: mm)
