Low Pass Filter

From DC to 10GHz

Brand :ENRICHTEK

P/N :ELP-10E

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-10E from ENRICHTEK is from DC to 10 GHz. The maximum handing power is 5 Watt(CW).The rejection at 11GHz-19GHz is larger than 30dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-10E is 1.4.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Pass Band Frequency	DC～10GHz
Pass Band Insertion Loss	≤1.5dB
Pass Band VSWR	≤1.4:1
Stop Band Rejection	≥30dB @ 11～19GHz
Impedance	50 ohms
Power	≤5W

Mechanical Specifications

Dimensions	282110mm
Connectors	SMA-Female
Surface Finish	Black Paint
Net weight	0.02 KG

Environmental Specifications

Operating Temperature	-40 to +80ºC
Storage Temperature	-55 to +95 ºC

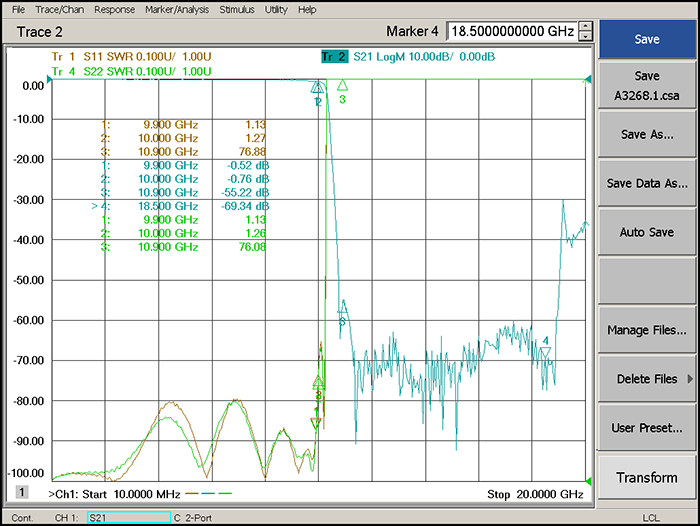

Typical Performance

DC～10GHz Low Pass Filter.png

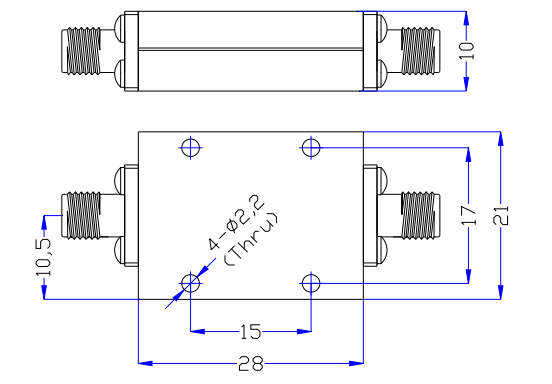

Outline Drawing (unit: mm)

DC~10GHz Low Pass Filter9.png
