Low Pass Filter

From DC to 18GHz

Brand :ENRICHTEK

P/N :ELP-18E

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-18E from ENRICHTEK is from DC to 18 GHz. The maximum handing power is 15 Watt(CW).The passband ripple is less than 1.0dB and the maximum insertion loss of this low pass filter ELP-18E is 1.0dB@DC~17.3GHz. T he rejection at 19.1GHz-26GHz is larger than 50dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-18E is 1.6.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	18GHz
Pass Band Frequency	DC～18GHz
Pass Band Insertion Loss	≤1.0dB @ DC～17.3GHz ≤3.0dB @ 17.3～18GHz
Pass Band VSWR	≤1.6:1
Stop Band Attenuation	≥50dB @ 19.1～26GHz
Impedance	50 ohms
Power	≤15W
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.0135 KG

Mechanical Specifications

Dimensions	181710mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

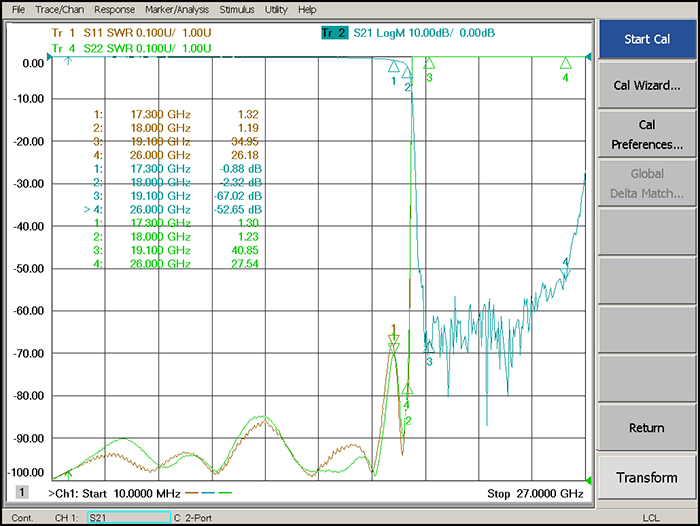

Typical Performance

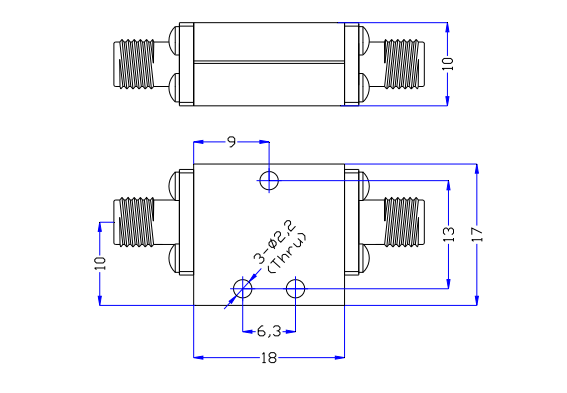

Outline Drawing (unit: mm)
